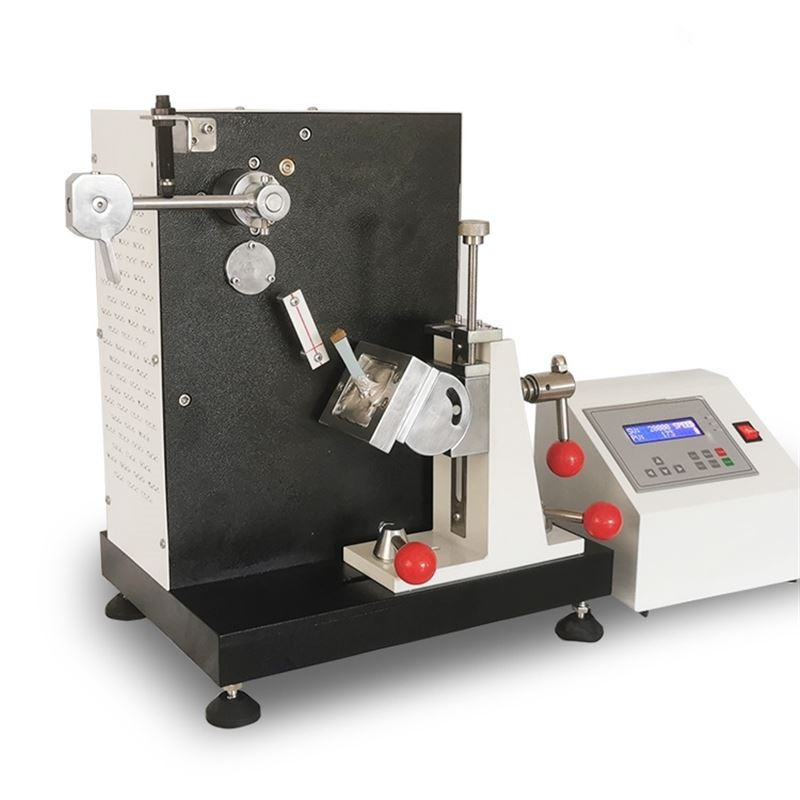

Heel Impact Fatigue Tester Technical Specifications
The heel impact fatigue tester is a test equipment independently developed and produced by our company. It is cost-effective and can test the heel of women's high heels to simulate the number of small impacts that people suffer during normal walking. The heel tip is facing up, and the heel is fixed upright on the fixed tray of the heel fatigue tester. The impact head of the pendulum vertically impacts the heel with a constant energy (0.68J) until it fails or reaches a satisfactory number of impacts.
Gellowen Science is the supplier of the old brand standard equipment, offering a comprehensive range of products across multiple industries. With a world-renowned reputation, Gellowen Science has established strategic partnerships with numerous multinational corporations. Our company is also actively involved in developing testing equipment for various fields, particularly focusing on providing customized solutions for our customers. We boast a talented team in research, development, design, and production of software and hardware, ensuring our testing equipment offers high quality, stable testing procedures, and advanced intelligence. Our testing equipment caters to production, education, research, quality inspection, and more, adhering to standards from different regions and countries, including EN, ISO, and BS.
Reference standards:
BS 5131, SATRA TM20, SATRA TM21, QB/T 2864, etc.
Technical specifications:
1. Impact energy: 0-18.3J (13.5ft-lb) Small product: 0.68J (0.50ft-lb)
2. Impact frequency: 60 times/minute
3. Swing arm energy: 17.3N-m (12.7ft-lb)
4. Hammer: F (57±1) mm, thickness (20±1) mm
5. Impact angle: 0-90 degrees
6. Counter: LCD, 0-9999999.
7. Power supply: AC220V, 10A.
8. Weight: 75 kg.
