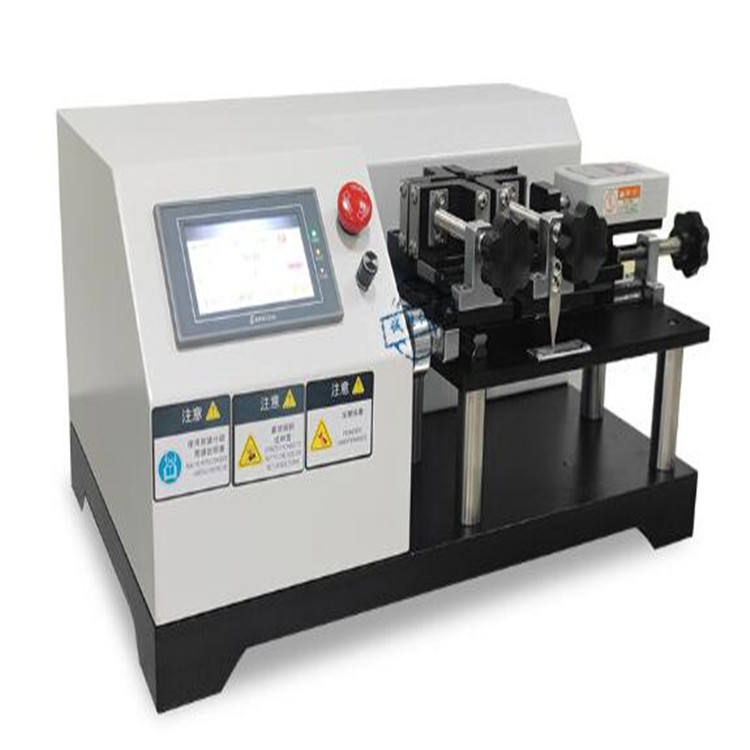

Technical parameters of leather rubbing resistance tester

The leather rubbing resistance tester is a test equipment independently developed and produced by our company. It has high-cost performance and is used to test the rubbing resistance of simulated materials such as leather, fabric, and coated fabric.


Gellowen Science is the supplier of the old brand standard equipment, offering a comprehensive range of products across multiple industries. With a world-renowned reputation, Gellowen Science has established strategic partnerships with numerous multinational corporations. Our company is also actively involved in developing testing equipment for various fields, particularly focusing on providing customized solutions for our customers. We boast a talented team in research, development, design, and production of software and hardware, ensuring our testing equipment offers high quality, stable testing procedures, and advanced intelligence. Our testing equipment caters to production, education, research, quality inspection, and more, adhering to standards from different regions and countries, including EN, ISO, and BS.

Reference standards:

GB/T 8948-2008, JIS L1096, ASO M403QB/1333-2018, QB/1618-2018, QB/T 5246-2018 and other standards


Technical parameters:

1. Sample load: 9.8N

2. Test speed: 120r/min

3. Test stroke: 0~50mm (adjustable)

4. Clamp width: 45mm

5. Maximum distance between clamps: 40mm

6. Sample size: 120×30mm

7. Volume: 65x51x30cm

8. Controller: color LCD, speed display, one-button test function

9. Counting range: 0-999999

10. Power: 400W

11. Weight: 45kg

12. Power supply: 220V 50Hz
