The main parameters of the whole shoe peeling strength tester

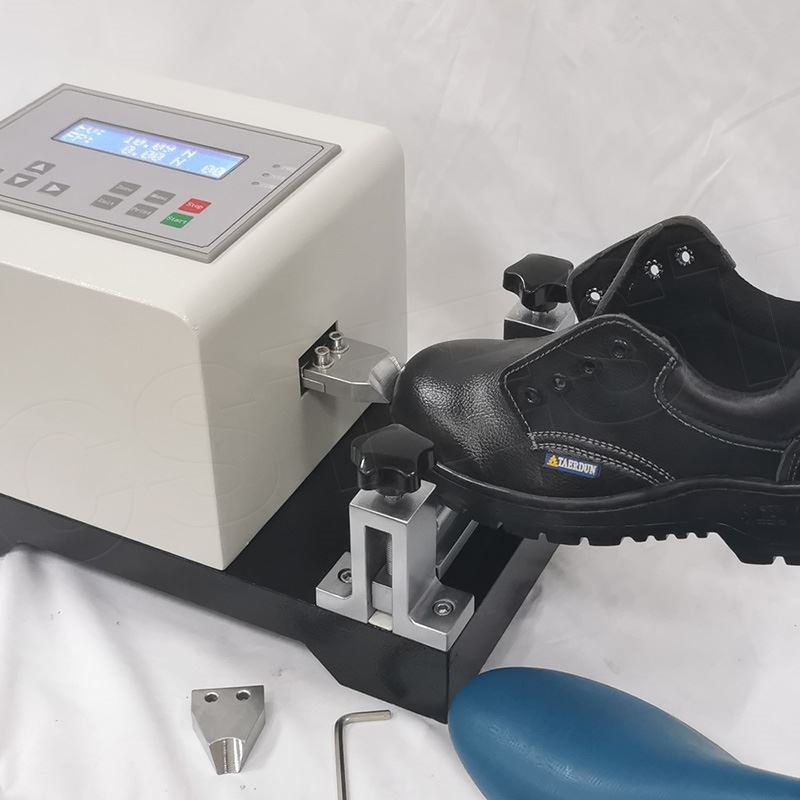

The shoe peeling strength tester is test equipment independently developed and produced by our company. It is suitable for testing the peeling strength between the sole and the upper of finished shoes and the peeling strength value of the upper and sole of men's and women's leather shoes or similar finished shoes.


Gellowen Science is the supplier of the old brand standard equipment, offering a comprehensive range of products across multiple industries. With a world-renowned reputation, Gellowen Science has established strategic partnerships with numerous multinational corporations. Our company is also actively involved in developing testing equipment for various fields, particularly focusing on providing customized solutions for our customers. We boast a talented team in research, development, design, and production of software and hardware, ensuring our testing equipment offers high quality, stable testing procedures, and advanced intelligence. Our testing equipment caters to production, education, research, quality inspection, and more, adhering to standards from different regions and countries, including EN, ISO, and BS.

Applicable standards:

GB/T 3903.3—2011 Footwear whole shoe test method peel strength

QB/T 4329-2012


Main parameters:

Maximum peeling force: 1000N

Peeling blade width: 20±0.2MM and 10±0.1MM

Peeling blade downward speed: 20±2MM/MIN, rising and falling speeds adjustable

Distance between positioning rod and pull rod: 50~70 MM adjustable

Micrometer: 0.001~10 MM, Accuracy: 0.001

Average lifting range: 40 MM

Volume (approximately): 560x320x750MM

Power supply: AC220V, 50HZ

Weight (approximately): 45 KG
