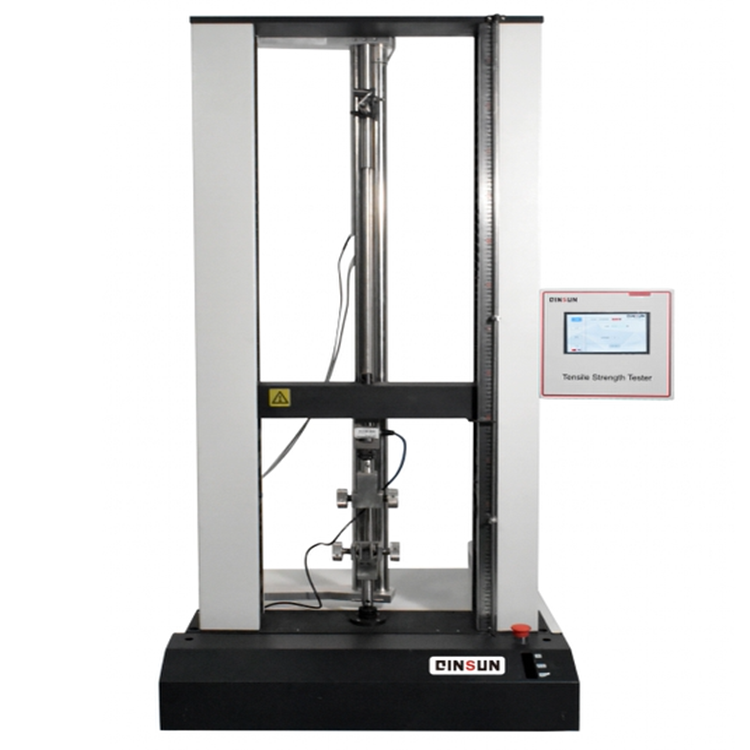

The plastic film tensile testing machine is testing equipment independently developed and produced by our company. It is mainly used for testing the tensile, compression, bending, and other mechanical properties of films, fibers, paper, and other materials.

Gellowen Science is the supplier of the old brand standard equipment, offering a comprehensive range of proucts across multiple industries. With a world-renowned reputation, Gellowen Science has established strategic partnerships with numerous multinational corporations. Our company is also actively involved in developing testing equipment for various fields, particularly focusing on providing customized solutions for our custoers. We boast a talented team in research, development, design, and production of software and hardware, ensuring our testing equipment offers high quality, stable testing procedures, and advanced intelligence. Our testing equipment caters to production, education, research, quality inspection, and more, adhering to standards from different regions and countries, including EN, ISO, and BS.

Applicable standards:

ASTM D5034, ASTM D2261, ASTM D434, GB/T3923, G

B/T3917, GB/T13772, FZ/T80007.1, ISO5081, DIN53859, DIN53858, BS3320, 4303, 2576, 2543

Main parameters:

1. Measuring range: 100N, 2500N, 5000N, optional

2. Tensile speed: 2mm/min~1200mm/min

3. Return speed: 2mm/min~1000mm/min

4. Timing stretching: 20s±3s, 30s±5s optional

5. Set stretching times: 99 times

6. Group average times: 2~30 times (warp average and weft average can be counted separately)

7. Elongation range: 350% at 200mm spacing

8. Spacing: 25~500mm can be adjusted arbitrarily

Application areas:

Film materials: used to test elastic modulus, yield strength, maximum tensile strength, and other parameters of film materials, providing important technical support for the research development and production of film materials.

Fiber materials: used to test the strength, elasticity, and other parameters of fiber materials, providing important technical support for the research development and production of fiber materials.

Paper materials: used to test the tensile strength, compressive strength, and other parameters of paper, providing important technical support for the research development and production of paper.

Other materials: suitable for mechanical property testing of various materials, including plastics, rubber, metals, and other materials.

Technical features:

High-precision measurement: The use of high-precision electronic control systems and sensors can accurately measure the mechanical properties of materials, ensuring the reliability of test results.

Automatic operation: The use of automated operation can quickly and accurately complete the mechanical properties test of materials, greatly improving the test efficiency.

Multi-function test: The thin film electronic tensile testing machine can perform a variety of mechanical properties tests such as stretching, compression, and bending, which is suitable for the testing needs of different materials.

High safety: The use of electronic limit and overload protection functions can effectively protect the safety of equipment and testers.

Easy maintenance: The structure is simple, maintenance is convenient, and the cost of use can be reduced.
