Standard Compliance

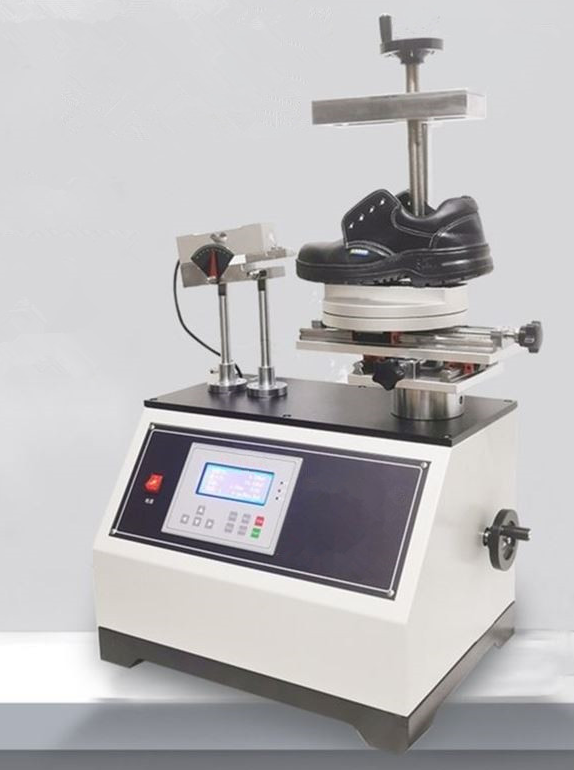

Our Shoe Stripping Tester is designed to meet rigorous international standards, including ASTM D1789, ISO 2087, and GB/T 3903.4, ensuring accurate measurement of peel strength between shoe components (soles, uppers, midsoles). It is indispensable for quality control in footwear manufacturing, athletic gear, and safety shoe production.

Product Advantages

1. Unmatched Precision:
• High-resolution load cell (±0.1N accuracy) and linear encoder track displacement for repeatable results.
2. Versatile Testing Modes:
• Supports 90° peel, 180° peel, and T-peel configurations to simulate real-world separation forces.
3. User-Centric Operation:
• 5-inch touchscreen interface with multilingual support (English, Spanish, German, Chinese) and preloaded test templates.
4. Robust Engineering:
• Anodized aluminum frame and anti-corrosion coating for durability in high-volume labs.
5. Safety & Efficiency:
• Automatic sample clamping, emergency stop, and over-torque protection prevent accidents and errors.

Product Features

• Adjustable Parameters:
• Peel angle: 0°–180° (customizable in 1° increments).
• Test speed: 50–500 mm/min (programmable).
• Load capacity: 0–1000N (adjustable).
• Data Management:
• Built-in USB/Wi-Fi for real-time data export; compatible with Excel, PDF, and CSV formats.
• Cloud integration for remote monitoring and batch analysis.
• Modular Design:
• Quick-change clamps for flat, curved, or irregular-shaped samples (shoe soles, straps, insoles).
• Environmental Control (Optional):
• Pair with a temperature/humidity chamber (-20°C to +80°C, 20–95% RH) for extreme-condition testing.
• Low Maintenance:
• Self-centering jaws and dust-proof enclosure minimize calibration needs.
