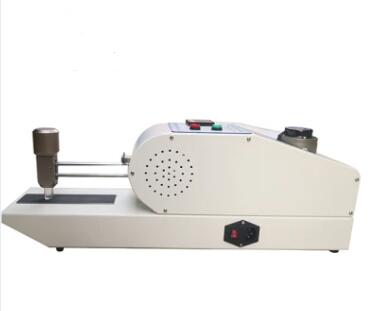

AATCC Standard Electric Rubbing Color Fastness Tester
Standards Compliance
Certified to meet international testing protocols:
- AATCC 8/165, ISO 105-X12, DIN 54021, BS 1006 D02, IWS TM 165, JIS K6328
- Ideal for assessing color migration resistance in fabrics, yarns, and dyed materials.
Product Advantages
- Unmatched Precision:
- Linear slide technology ensures smooth, vibration-free operation for consistent rubbing cycles.
- Self-leveling rubbing head maintains horizontal contact, eliminating manual adjustments and human error.
- User-Friendly Design:
- Auto-stop function at pre-set counts (1–99,999 cycles) streamlines workflows.
- Compact footprint (600×225×270mm) and lightweight design (13kg) enhance portability.
- Versatile Testing:
- Adjustable rubbing pressure (9N) and speed (60 cycles/min) simulate real-world wear conditions.
- Compatible with dry, wet, and solvent-based tests for comprehensive analysis.
- Global Compliance:
- Pre-programmed modes for AATCC, ISO, and DIN standards simplify certification.
- Durability:
- Robust construction withstands high-volume testing in industrial environments.
Product Features
- Self-Leveling Rubbing Head:
- Automatically adapts to specimen thickness, ensuring even pressure distribution without manual intervention.
- Motorized Operation:
- Eliminates variability from manual testing, delivering repeatable results cycle after cycle.
- Digital Control Panel:
- Intuitive interface for setting test parameters (cycles, speed, pressure) and real-time progress tracking.
- Safety & Efficiency:
- Overload protection and emergency stop function safeguard operators and equipment.
- Easy Maintenance:
- Removable rubbing head and friction pad for quick cleaning and replacement.
Technical Parameters
| Parameter | Specification |
|---|---|
| Testing Range | 1–99,999 cycles (auto-stop) |
| Rubbing Travel | 104 ± 3 mm |
| Rubbing Speed | 60 cycles/minute |
| Applied Pressure | 9 N (adjustable via accessories) |
| Rubbing Head | Ø16 mm roundness, self-leveling design |
| Power Supply | AC 100–240V, 50/60Hz (universal adapter) |
| Dimensions (W×D×H) | 600 × 225 × 270 mm |
| Weight | 13 kg (net) |
| Data Output | Digital display with exportable test logs |
Why Choose Our Electric Rubbing Tester?
- Certified Accuracy: Adheres to AATCC, ISO, and DIN standards for global market access.
- Time Efficiency: Motorized operation reduces testing time by up to 70% vs. manual methods.
- Cost-Effective: Single device replaces multiple manual tools with adjustable parameters.
- 24/7 Reliability: Built for high-frequency use in labs and production lines.
Ideal Applications:
- Textile mills (cotton, synthetic, blended fabrics)
- Dyeing and finishing plants
- Automotive interior manufacturers
- Quality control laboratories
Upgrade your color fastness testing with precision and compliance.
Contact us for video demos, custom quotes, or integration support.
