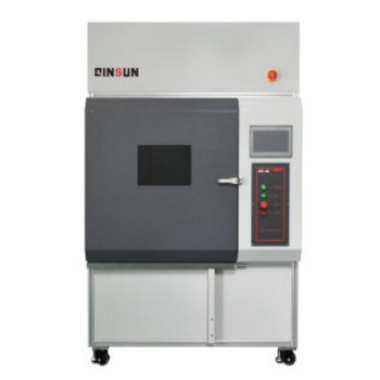

ISO 4892 Solar Light Aging Tester
Standard Compliance
This xenon arc accelerated aging test chamber is designed in strict accordance with international standards, including ISO 4892-1/2 (Plastics—Methods of Exposure to Laboratory Light Sources), ASTM G155 (Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials), and other equivalent global regulations. It ensures reliable, repeatable, and standardized testing results for materials exposed to simulated environmental conditions.
Product Advantages
- Full-Spectrum Sunlight Simulation: Equipped with a high-performance xenon arc lamp, the tester replicates the complete solar spectrum (300nm-1200nm), including UV, visible light, and infrared wavelengths, to accurately mimic natural sunlight exposure.
- Accelerated Aging Testing: Accelerate material degradation processes under controlled conditions, reducing testing cycles from months to days while maintaining scientific accuracy.
- Multi-Environment Adaptability: Customizable parameters such as temperature, humidity, rainfall, and irradiation intensity enable simulations of diverse climates—from arid deserts to humid tropics.
- Material Durability Evaluation: Ideal for assessing the aging resistance of plastics, coatings, textiles, automotive components, and outdoor equipment, aiding in material selection and quality control.
- Energy-Efficient Design: Adopts imported 1.8KW xenon lamps with a 2000-hour lifespan, minimizing maintenance costs while ensuring stable performance.
Product Features
- Precision Environmental Control:
- Adjustable blackboard temperature range (65–98%RH) and humidity control for dynamic climate simulations.
- Programmable rainfall cycles (1–9999 minutes) with interval adjustments (1–240 minutes) to replicate monsoon or intermittent weather patterns.
- Water spray pressure regulation (0.12–0.15 MPa) for realistic wetting effects.
- Advanced Irradiation System:
- Dual irradiance modes (150W/m² & 736W/m²) to match specific testing requirements.
- Filtered light waves eliminate non-destructive spectra, focusing on critical aging factors.
- User-Friendly Operation:
- Intuitive touchscreen interface with real-time data monitoring and export functions.
- Modular design for easy lamp replacement and chamber cleaning.
- Robust Construction:
- Corrosion-resistant stainless-steel interior and durable exterior coating for long-term reliability.
- Spacious test chambers (models: 150/225/408) accommodate samples of varying sizes.
Technical Parameters
| Specification | Model 150 | Model 225 | Model 408 |
|---|---|---|---|
| Studio Size (D×W×H, mm) | 500×600×500 | 500×600×750 | 800×850×650 |
| Overall Dimension (mm) | 1030×1090×1640 | 1440×1280×2060 | 1440×1380×2060 |
| Total Power | 11.5KW | 12.5KW | 14.5KW |
| Net Weight | 340KG | 460KG | 660KG |
| Blackboard Temperature Range | 65–98%RH (adjustable) | 65–98%RH (adjustable) | 65–98%RH (adjustable) |
| Rainfall Time | 1–9999 min (adjustable) | 1–9999 min (adjustable) | 1–9999 min (adjustable) |
| Rainfall Cycle | 1–240 min (interval adjustable) | Same as above | Same as above |
| Water Spray Pressure | 0.12–0.15 MPa | 0.12–0.15 MPa | 0.12–0.15 MPa |
| Measured Wavelength | 400nm–1000nm | 400nm–1000nm | 400nm–1000nm |
| Irradiance | 150W/m² / 736W/m² | 150W/m² / 736W/m² | 150W/m² / 736W/m² |
| Xenon Lamp Power | Imported 1.8KW (2000h lifespan) | Same as above | Same as above |
Applications
- Research and development of new materials.
- Quality control for automotive, aerospace, and construction industries.
- Performance evaluation of coatings, polymers, and textiles.
- Accelerated lifetime testing for consumer goods and packaging.
This xenon arc accelerated aging test chamber provides a cost-effective solution for predicting material longevity and optimizing product designs, ensuring your products withstand the test of time and environment. Contact us today to customize a testing solution for your specific needs.
