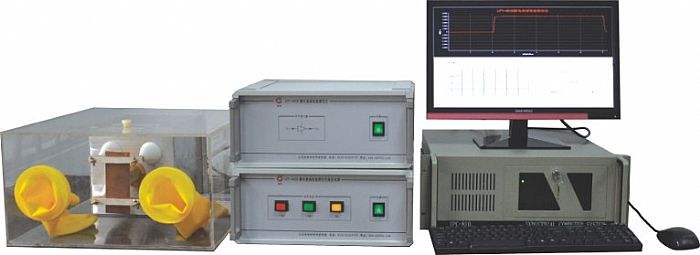

Static Honest Meter – Precision Instrument for Static Electricity Attenuation Analysis
Standards Compliance
The Static Honest Meter adheres to internationally recognized testing standards, ensuring reliability and accuracy in static electricity attenuation measurements:
- GB/T 12703.1 (China National Standard for Electrostatic Properties of Textiles)
- FZ/T 01042 (China Textile Industry Standard for Static Attenuation Testing)
- JIS L1094 (Japanese Industrial Standard for Electrostatic Propensity of Textiles)
Product Advantages
- Versatile Application: Ideal for testing static decay in films, boards, threads, fabrics, carpets, glass panels, and more, meeting diverse industrial needs.
- Non-Destructive Testing: Utilizes corona discharge for electrification, eliminating friction and preventing sample damage while enabling repeatable measurements.
- Superior Reproducibility: Compared to friction-based methods, the corona discharge technique ensures consistent results for reliable cross-method comparisons.
- Customizable Charging: Select polarity (positive/negative) and adjust voltage (0–10kV) to simulate real-world electrostatic conditions.
- Automated Analysis: Optional software generates detailed decay curves and half-life calculations, streamlining data interpretation.
- Safety First: Built-in auto-stop function for high voltage/motor protection, with a separation design isolating the test chamber from controls.
Product Features
- Modular Design: Tester and controller operate independently, enhancing safety and ease of use.
- Digital Precision: High-resolution voltmeter displays real-time electrostatic voltage (0–10kV) and half-life decay (0–99.99 hours).
- One-Touch Operation: Integrate with the optional analyzer to automate decay curve recording and half-life computation.
- JIS L1049 Compliance: Specifically validated for woven and knitted fabric electrostatic propensity testing per Japanese standards.
- Universal Compatibility: Suitable for flat specimens up to 60mm x 80mm, including textiles, industrial materials, and electronics components.
Technical Parameters
| Parameter | Specification |
|---|---|
| Electrostatic Voltage Range | 0–10kV (adjustable) |
| Half-Life Measurement | 0–99.99 hours |
| Rotation Speed | 1,500 RPM (for specimen charging) |
| Discharge Time | 0–99.99 seconds (preset: 30 ± 0.1s) |
| Discharge Distance | Needle-to-specimen: 20mm |
| Measurement Distance | Probe-to-specimen: 15mm |
| Calibration | Pre-calibrated static voltage |
| Sample Size | 60mm (W) x 80mm (L) |
| Power Supply | 220V, 50Hz, 1.5kW |
| Operational Requirement | Cylinder must be filled with transformer oil pre-use |
Why Choose the Static Honest Meter?
Ideal for quality control in textiles, electronics, automotive, and packaging industries, this instrument combines precision with user-friendly design. Its compliance with global standards and compatibility with optional software make it a cornerstone for labs requiring accurate, repeatable static decay analysis.
