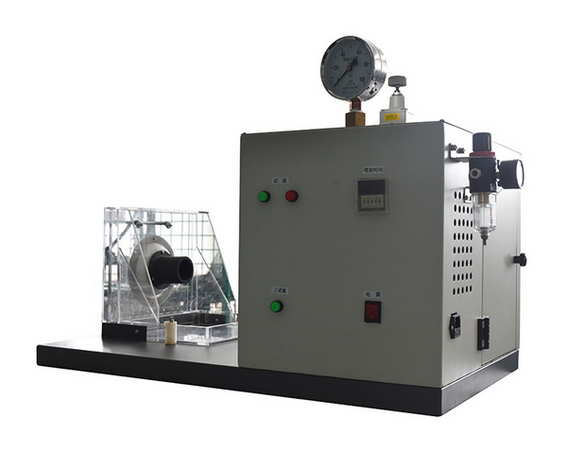

RC1321 Medical Mask Synthetic Blood Penetration Tester is used to test the resistance of medical masks to penetration by synthetic blood under specified test conditions.

Standards compliant:

GB/T 19083-2010 Technical requirements for medical protective masks 5.5 Penetration of synthetic blood

YY 0469-2011 Medical surgical masks 5.5 Penetration test of synthetic blood

YY 0469-2004 Technical requirements for medical surgical masks 5.5.1 Synthetic blood penetration

YY/T 0691-2008, ISO 22609: ASTM F 1862-07

technical parameter:

1. Spray distance: 300mm～310mm±1mm adjustable

2. Inner diameter of needle tube: 0.84mm

3. Injection speed: 450cm/s, 550cm/s, 635cm/s

4. Dimensions: 1000mm×460mm×550mm (L×W×H)

5. Power supply: AC220V, 50Hz, 100W

6. Weight: about 83kg

Technical Features:

1. The special injection control device can inject a certain volume of synthetic blood within a controlled time.

2. The instrument adopts an air source that can provide (700±25) kPa stable air pressure.

3. It can simulate the liquid injection speed corresponding to human blood pressure 10.6kPa, 16.0kPa, 21.3kPa (ie 80mmHg, 120mmHg, 160mmHg) for testing.

4. There is a fixed target plate, which can block the high-pressure edge part of the sprayed liquid flow, and only allow the steady flow part to be sprayed on the area sample, which increases the accuracy and repeatability of the test.

5. The instrument adopts imported special aluminum wire drawing panel, equipped with metal buttons, which is sensitive in operation and not easy to be damaged.

6. The color touch screen displays the test parameters, and the menu operation mode is as convenient as a smartphone.

7. The core control components use ST's 32-bit multi-function motherboard.

8. The instrument shell is made of 304 stainless steel, which is durable and has a clean and fresh appearance.

QINSUN Testing Instrument Co., Ltd. is a laboratory instrument manufacturer specializing in the research and development, production, sales and service of instrument testing equipment. Our RC1321 Medical Mask Synthetic Blood Penetration Tester has been sold all over the world, and has established close and trusted cooperative relations with many international authoritative testing institutions, medical laboratories and advanced manufacturing companies. If you have this demand ,Welcome to contact us.
