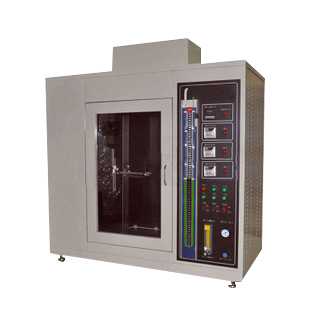

Automotive interior trim horizontal combustion tester is developed according to GB 8410, TL1010, DIN75200, GM9070P, FMVSS 302 and other standards, and is used to simulate the horizontal combustion characteristics of automotive interior trim materials in real life, the instrument includes combustion box and control box, using the principle of a large box set of small boxes, the device is designed as an integrated machine containing a fume hood, which can meet the The test wind speed required in the standard.

Automotive upholstery horizontal combustion tester structure:

The combustion box of the automobile interior horizontal combustion tester includes the box and the specimen holder, temperature sensor, filament, position motor and burner set inside the box, the temperature sensor is set inside the box, the burner is set on one side of the box, the specimen holder is set on the other side of the box, the specimen holder and the position motor inside the box are connected by a filament to the control panel of the control box with the burner switch, display screen, PLC controller, the control box is set inside the control box with the burner switch, display screen and the burner motor. PLC controller is set inside the control box, PLC controller is connected to the display, burner switch, burner, temperature sensor, position motor, and the position motor is connected to the test bracket, the combustion box is made of stainless steel, beautiful and durable, PLC controller and integrated LED display are used, the control system is highly automated, the position motor can drive the specimen bracket to move, and it can be moved in different positions. The combustion chamber is equipped with high-precision temperature sensor, real-time monitoring and digital display of temperature on the LED display. The structure schematic diagram is shown in Figure 1.

Automotive interior horizontal combustion tester features.

Control mode: PLC programming + touch screen control

Data display: seven-inch Vinylon or Panasonic LCD display

Data output: at the end of the test, the equipment automatically determine the qualified and unqualified; generate test reports test report printing, to achieve automatic numbering, storage and printing of test reports

Ignition mode: automatic ignition

Flame application time: 0-999.9s ± 0.1s adjustable

Delayed ignition time: 0-99h59m59.99s±0.1s, manual start/pause

Combustion box dimensions: length 385mm X width 204mm X 380mm

Combustion box installation: the bottom of the combustion box from the bottom of the equipment 10mm

Test wind speed: 100mm before and after the combustion box air vertical velocity between 0.10m / s ~ 0.30m / s, and in the right side of the equipment plus change the anemometer monitoring outlet

U-shaped bracket: two U-shaped stainless steel plate made of the upper bracket behind the 2 pin holes, the next support plus the corresponding 2 pins, and cloth with a line diameter of 0.25mm and the spacing of 25mm heat-resistant metal support line

Gas lamp: the inner diameter of 9.5mm, the center of the mouth of the lamp is in the center of the free end of the sample 19mm below and can be automatically ignited

Gas: use liquefied gas, but also available combustion calorific value of 35 MJ / m ~ 38 MJ / m of other combustible gases (self-provided)

Specimen installation: the specimen is installed in the combustion box floor 178mm above

Power supply: 220VAC-15%～220VAC+10% 500W (single-phase three-wire system)

Dimension: length 1200×width 650×height 1500mm, exhaust hole Φ 100mm

QINSUN production and export of automotive interior horizontal combustion tester, has been with a number of laboratories / car companies around the world, please leave a message if you have to buy!
