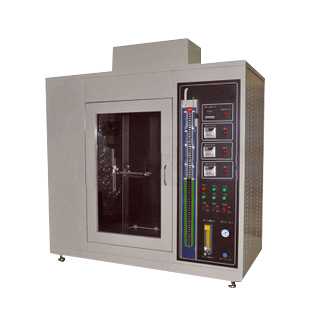

Horizontal Flammability Tester is to simulate the early situation of fire in the surroundings of electrical and electronic products, and is used to simulate the technical assessment of the risk of fire and to ensure that the fire around the product does not cause the spread of combustion. The test equipment is applicable to components, parts and components of electrical and electronic household appliances, such as: insulated housings of household appliances, switch panels, printed circuit boards and insulating materials, etc.

The following is the operation method of Horizontal Flammability Tester:

1、Connect the gas pipe to the burner and control box and gas tank, check the gas pipe interface to prevent gas leakage.

2, turn on the power switch 9, the application of flame time 1, afterflame time 2 and afterburning time 3 according to the requirements set (debugging can be set to a short time).

3、Clamp the sample, make the burner tilt to a certain angle (0 °, 20 °, 45 °), adjust the fixture 30 and the sample to make it in the test position.

4、Set the gas flow adjustment valve to the minimum.

5, open the main valve of the gas tank, connect the gas source, press the gas supply key 10, while using a lighter or match for ignition and adjustment, the pressure of the gas pressure regulating valve is adjusted to 0.1Mpa, adjust the gas flow regulating valve 14, while making the back pressure of the gas - U-type manometer 26 pressure to the appropriate pressure, so that the flame reaches the standard height. The burner should be in vertical position during ignition. (If you use premixed burner, you also need to connect compressed air gas source and adjust the pressure to 0.1Mpa, and adjust the air flow regulating valve 15 to make the flame reach the requirement.
