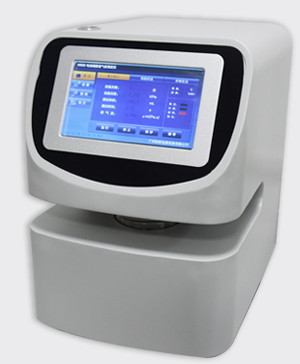

Mask airflow resistance tester is also known as fabric air resistance tester, mainly used to determine the textile and wadding. Space cotton and other air penetration resistance, is the identification of clothing. Textiles, especially the comfort of medical textiles. One of the important means of health.

Product application.

Instruments are widely used in polymer material production enterprises. Printing and dyeing industry enterprises. Textile inspection department. Scientific research units. Textile colleges and universities.

Instrument features.

1. Instrument by the adjustable flow of gas source. Specimen clamping device. Air pressure measurement system.

2. Digital display of airflow resistance, with zero point correction. Accuracy correction function.

3. Easy to operate.

Technical parameters.

1. Air flow adjustment range: 10L/min-100 L/min (600L/h-6000 L/h)

2. Airflow resistance measurement range: 0-1kPa

3. Test time: 1 second ~ 99 hours optional

4. Power supply: AC220V, 50Hz

5. Machine power: 1.2KW

Conformity with standards.

BS EN 14683-2005 GB 19083-2010 GB2626-2006 YY 0469-2011 YYT 0969-2013

Product features.

1. Intelligent touch screen control panel

2. PLC control system, more GX more reliable, programmable 7-inch color LCD touch screen, to achieve a variety of functions such as control, detection, calculation, data display, etc.

3. Imported accessories

4. The instrument is equipped with a large flow of imported flowmeter, high precision, good data repeatability, stable performance.

5. super power pumping jig can be interchangeable

6. the instrument is equipped with a large power pump pumping, fixture with a variety of models of test fixture optional, can meet a variety of testing needs, in addition, with overload protection, leakage protection, safe and reliable.
