Air permeability was a very important factor for textile products made of various materials, such as air bags, clothing, parachutes, sails, tents and awnings, air filtration materials and vacuum cleaner bags. Air permeability is also widely used in all weather and rain proof fabrics. For clothing, it is a key condition affecting the comfort of wearing. Sportswear and functional textiles use air permeability index as a standard to measure the weatherability and rain resistance of fabrics. Air permeability requirements are also widely used in military and industrial applications.

Air permeability tester was used to test the air flow rate per unit area under specific pressure conditions. Users just needed to set the standard test pressure, and the instrument would automatically detect the test head area, automatically select the size of the test hole and automatically control the fan's pumping force. Its unique functions include automatic detection of test head size and automatic adjustment of test pressure. Users do not need to perform pre-test. The instrument is suitable for a variety of fabrics, including woven fabrics, non-woven fabrics, bag fabrics, blankets, pile fabrics, knitted fabrics, multilayer fabrics and cotton fabrics, which may be competitive, large area, coated, resin-treated or any other treated fabrics. The instrument can also test airflow through thick, elastic porous objects, such as polyurethane foam. The Air permeability tester met various test standards such as ASTM D 737, D3574 and ISO 9237. .

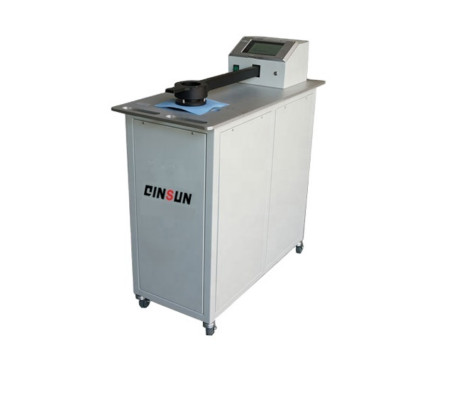

The Air permeability tester comes with a compact design for easy installation and testing of a large area of samples. The pressure system automatically detects the range of air pressure and detects and calibrates the mounted test head. The test results can be displayed on the LED screen or entered into the computer through the SDl Atlas software (optional).

Main features:

Automatic pressure range control sensor has an automatic pressure range control system to automatically detect the size of the installed test head and preset the required pressure range of the sample, so that the user does not need to manually adjust the pressure and do pre-test.

Test area Large 50 cm long test arms can be used to test larger samples without having to cut the sample into many smaller pieces. Press the test arm to enter the test directly, release to end the test.

-- Simple display test results can be displayed on the LED screen or entered into the computer through the SDl Atlas software (optional).

-- Flexible compact design The device is small in size and equipped with casters, making installation convenient and fast.

Vacuum pump speed automatic adjustment and low noise, with replaceable test hole plate, easy calibration and daily maintenance
