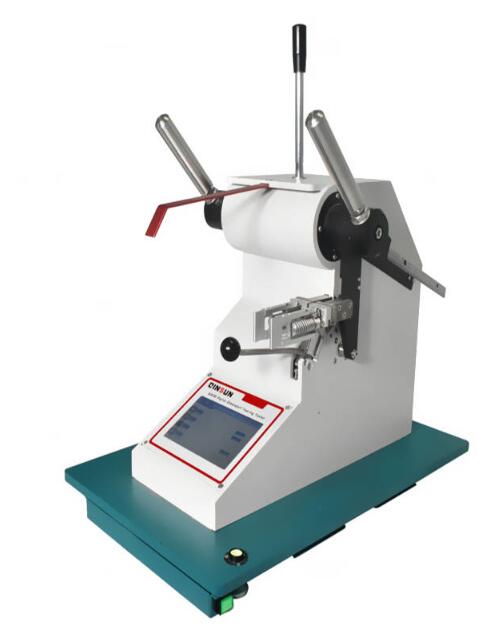

The Paper Tearing Strength Tester is an instrument for testing the tearing strength of paper, which measures the magnitude of paper tensile strength, tearing resistance and punching force.

Paper Tearing Strength Tester Working principle:

The pendulum is lifted to a certain height so that it has a certain potential energy. When the pendulum is swinging down freely, it uses its own stored energy to tear the specimen, and the computer control system calculates the energy consumed when tearing the specimen, so as to obtain the force required to tear the specimen.

Paper Tearing Strength Tester Test steps:

1. Raise the pendulum to its initial position and fix it with the pendulum release mechanism, placing one half of the specimen facing the knife and the other half facing the knife on the opposite side;

2. The side edges of the specimen should be neat and the bottom edge should be in contact with the bottom of the clamp and clamped correctly;

3. Use the cutter to cut a neat cut into the specimen and return the cutter to its resting position;

4. Make contact between the pointer and the pointer stop, quickly press down on the release device of the pendulum and gently grasp it with your hand when the pendulum is swinging back and does not interfere with the position of the pointer;

5. Hold the pointer at eye level with the operator and read the pointer reading or the digital display;

6. Release the clamp to remove the torn specimen and return the pendulum and pointer to the initial position in preparation for the next measurement;

7. When 1 or 2 specimens in the test have a deflection of more than 10mm from the end of the tear line to the left or right of the knife extension, the test should be discarded;

8. Repeat the test until 5 satisfactory results are obtained;

9. If more than two specimens are deflected by more than 10 mm, the results may be retained but the deflection should be noted in the report;

10. If, during tearing, the specimen produces a glassy phenomenon rather than tearing in the normal orientation, the tear deflection should be treated as described above.

Paper tear strength tester is used to test the tear strength of paper, cardboard, single-layer and multi-layer corrugated cardboard, QINSUN instrument is a textile testing instrument manufacturer, can provide a variety of textile testing instruments, the company's technical engineers said, the detection of paper tear strength usually according to different materials and choose different test programs, in the use of paper tear strength tester to do test experiments do not blindly When using the paper tear strength tester for testing experiments, do not use it blindly, but read the instructions and operate according to them.
