The differential pressure test is an important test conducted on masks to assess their breathability and effectiveness in filtering air. In this test, the mask is subjected to a specified differential pressure, and the resulting airflow resistance is measured. Here's a detailed explanation of the differential pressure test for masks:

1. Purpose of the Test:

The primary purpose of the differential pressure test is to evaluate the breathability or air permeability of a mask. It helps determine the resistance of the mask to airflow during breathing, which is essential for user comfort and ensuring that the mask does not impede normal respiration.

2. Test Method:

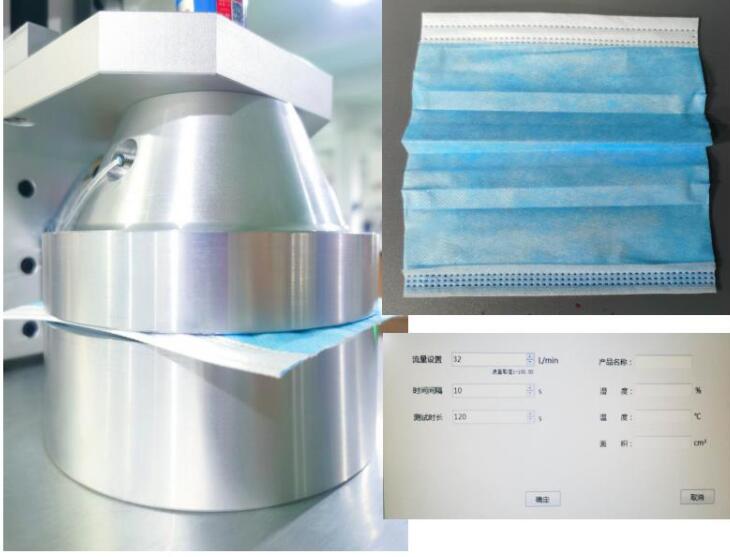

The differential pressure test involves exposing the mask to a specific pressure drop. The pressure drop is typically generated by using a differential pressure gauge or manometer. The mask is clamped securely over an airtight fixture, and a controlled airflow is passed through it. The pressure drop across the mask is then measured.

3. Measurement of Pressure Drop:

The pressure drop is measured in units of millimeters of water column (mmH2O). It represents the resistance of the mask to airflow. The pressure drop is determined by calculating the difference in pressure between the upstream (before the mask) and downstream (after the mask) sides of the test specimen.

4. Test Equipment:

The test equipment required for conducting the differential pressure test includes a differential pressure gauge, a test fixture or holder to secure the mask, and a controlled airflow source. The differential pressure gauge measures the pressure drop across the mask, and the airflow source provides a consistent airflow rate.

5. Test Procedure:

The differential pressure test is typically performed as follows:

   a. Prepare the mask specimen according to the specified size and shape requirements.

   b. Clamp the mask securely onto the test fixture or holder, ensuring a proper seal.

   c. Connect the differential pressure gauge to the upstream and downstream sides of the mask.

   d. Adjust the airflow rate to the specified level, usually indicated in liters per minute (LPM).

   e. Allow the airflow to stabilize for a specified duration, typically a few seconds.

   f. Record the pressure drop indicated by the differential pressure gauge.

   g. Repeat the test with multiple samples to ensure consistent results.

6. Acceptance Criteria:

The acceptance criteria for the differential pressure test vary depending on the applicable standards and mask type. In general, a lower pressure drop indicates higher breathability and lesser resistance to airflow. The specific requirements for pressure drop may be defined by regulatory bodies or industry standards organizations.

7. Importance of the Test:

The differential pressure test is crucial for evaluating the breathability of masks, especially those intended for respiratory protection or medical purposes. Masks with low pressure drop values offer better comfort, as they allow for easy and unrestricted airflow during breathing. Excessive pressure drop can make it difficult for individuals to breathe comfortably and may reduce the overall effectiveness of the mask.

8. Compliance and Certification:

Masks that pass the differential pressure test and meet the specified requirements can be certified and marked accordingly. Regulatory bodies, such as the Food and Drug Administration (FDA) in the United States and the European Committee for Standardization (CEN) in Europe, may require masks to undergo this test as part of the certification process.

In summary, the differential pressure test is performed to assess the breathability and air permeability of masks. By measuring the pressure drop across the mask, manufacturers and regulatory bodies can determine if the mask meets the required standards for airflow resistance, thus ensuring user comfort and effective filtration.
