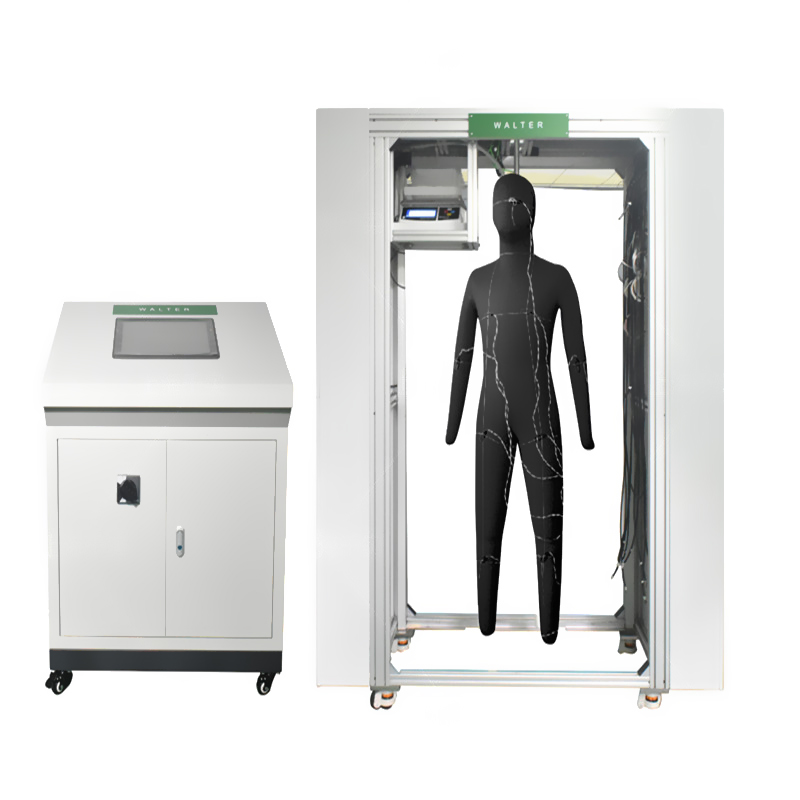

Warm Sweating Dummy Tester records the surface temperature,environmental parameters,and heating power of the fake human body,calculates the evaporation resistance of the clothing,and completes the test before simulating the drying of the skin to evaluate the overall thermal and humidity comfort of the clothing.It is a testing equipment independently developed and produced by our company,Shanghai Qianshi Precision Electromechanical Technology Co.,Ltd.,with high cost-effectiveness and complete after-sales service.

　　Applicable standards:

　　ISO 15831,ASTM F2370-05,ASTM F2371-05,EN 13537,EN 342 and other standards

　　Operation:

　　1.Firstly,prepare the accessories and test samples

　　2.Thread the skin from the bottom of the dummy's feet to the dummy's body,and zip the back over the dummy's head

　　3.Attach the skin temperature and humidity sensors to the designated areas of the dummy's skin

　　4.Turn on the switch of the electronic control box and enter the【Configuration】on the main operation interface

　　5.Set parameters such as power,time,ambient temperature,and humidity separately

　　6.Select"Save&Load"to import data on general settings,skin temperature,and skin humidity

　　7.Click the【Return】button

　　8.Operate the water injection and drainage control in sequence,adding water to the make-up water tank and the human model separately

　　9.After adding water,click[Run]to start testing

　　10.The system automatically enters the start recording stage

　　11.The test is completed,and the instrument displays all final results.Analyze the data results to evaluate the overall thermal performance of the clothing.

　　Advantages and characteristics:

　　1.Have a strong after-sales service team;

　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;

　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.
