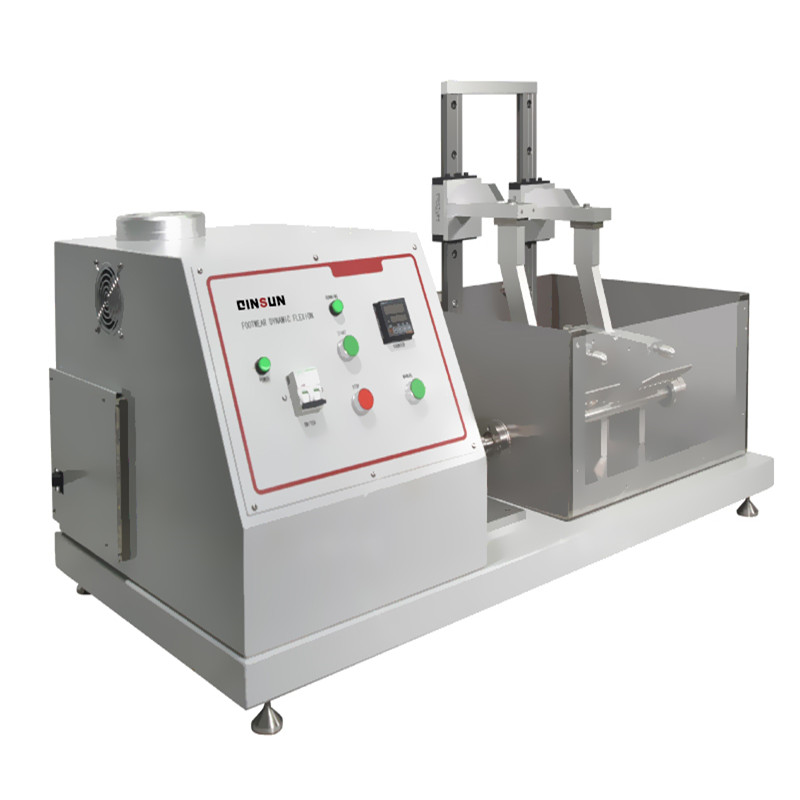

G184 Shoe Bending Tester is mainly used to test the room temperature bending resistance of finished shoes and soles/pieces.It is an instrument for testing the bending resistance and resistance of various textile materials.

　　Compliant with standards:

　　GB/T3903.1-1994,Satra TM92&77 and other standards

　　Testing process:

　　Install the finished shoe or sole on a fixture,conduct a bending test at a certain angle and frequency,measure the cracks(openings)and opening length of the sole and collar after a certain number of bending cycles,and observe the changes in the upper of the shoe.

　　Main parameters:

　　A.Fixture:2 sets;

　　B.Bending angle:50°±1°(0°~5°)adjustable;

　　C.Test speed:230±10r/min;

　　D.Motor:3-phase,AC 2KW;

　　E.Volume(approximately):Host 78×sixty-eight×125cm.

　　Operation:

　　1.Firstly,prepare the accessories and test samples;

　　2.Install the prepared sample into the fixture;

　　3.Turn on the instrument switch;

　　4.Set the counter value;

　　5.Start operation;

　　6.The instrument begins to perform bending tests on the sole of the sample shoe;

　　7.When the set value is reached,the instrument automatically stops;

　　8.Remove the sample;

　　9.Turn off the instrument;

　　10.At the end of the experiment,take the sample for analysis and comparison to evaluate the overall bending resistance of the shoes.

　　Advantages and characteristics:

　　1.Have a strong after-sales service team;

　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;

　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.
