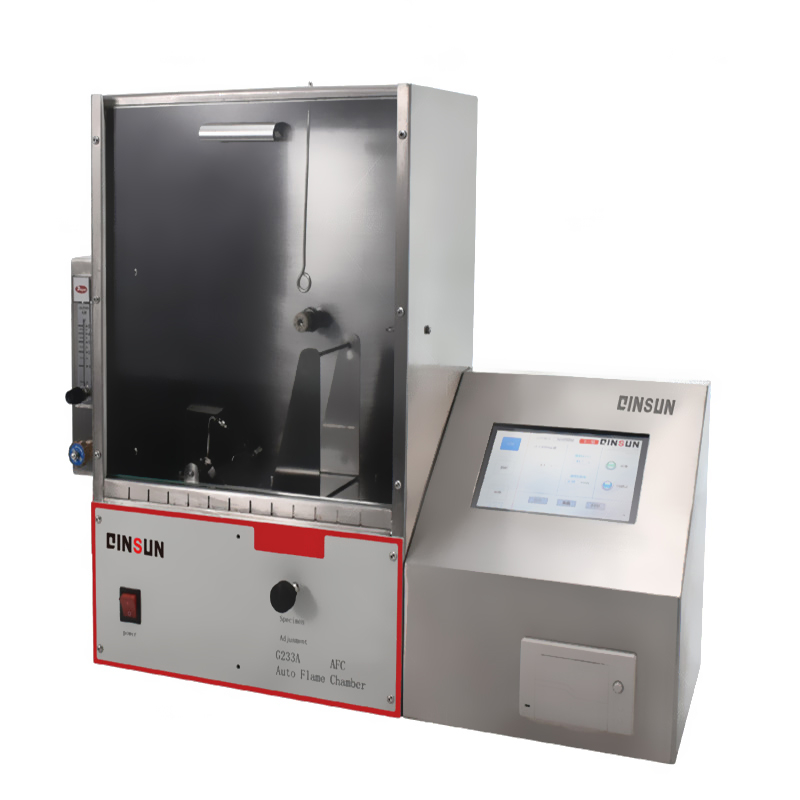

G233A 45°Combustion Tester is mainly used to test the flame retardant performance of fabrics such as clothing textiles,toy fabrics,and soft furniture fabrics.

　　Compliant with standards:

　　CFR 1610,ASTM D1230,NFPA 702,CA TB117,BIFMA,GB/T14644

　　Operation:

　　1.Firstly,prepare the accessories and test samples;

　　2.Place the test sample into the fixture and secure it;

　　3.Place the fixture containing the sample into the test box;

　　4.Hook one end of the cotton thread with a weight,and then connect it through the wire loop,fixture hook,fixed coil,and other positions;

　　5.Adjust the position of the sample clamp;

　　6.Use an igniter to ignite the burner;

　　7.Turn on the instrument switch and enter the LCD screen operation interface;

　　8.Set ignition time;

　　9.Start the experiment;

　　10.The igniter automatically ignites and the test sample begins to burn;

　　11.After five seconds,the timer will automatically start;

　　12.When the cotton thread is burned off,the weight automatically falls down,and the timing ends to determine the burning rate;

　　13.Click to print;

　　14.After the test is completed,remove the sample fixture and turn off the instrument;

　　15.After the detection material catches fire;

　　16.The flame propagation time in the 45 degree direction,the intensity and speed of material combustion,and the classification of product flammability to evaluate the combustion performance of the product.

　　Advantages and characteristics:

　　1.Have a strong after-sales service team;

　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;

　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.
