Advantages and characteristics:

　　1.Have a strong after-sales service team;

　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;

　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.

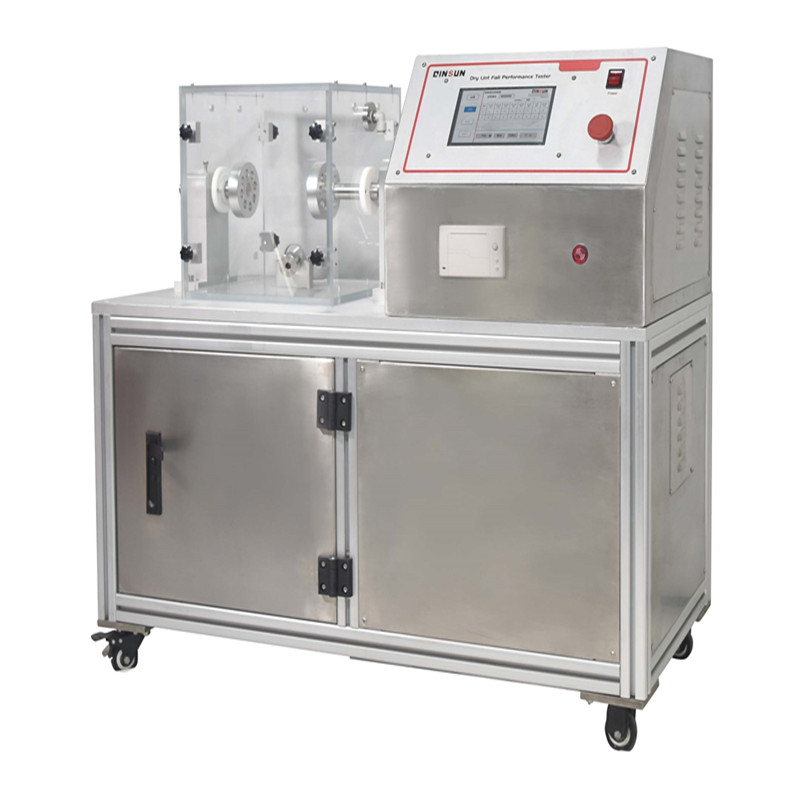

　　G275 Dry Flotting Tester is used to test the shedding and shedding performance of medical clothing such as surgical gowns and clean clothing,as well as non-woven fabrics under dry conditions.

　　Applicable standards:

　　YY/T0506.4,ISO9073.10,INDAIST160.1,DIN EN13795-2

　　Main parameters:

　　1.Twisting speed:60 times/minute;

　　2.Twisting angle/stroke:180°/120mm;

　　3.Sample fixture:82.8mm;

　　4.Laser particle counter testing range:Collect samples ranging from 0.3 to 25.0um;

　　5.Laser particle counter flow rate:28.3L/min,±5%;

　　6.Sample testing data storage:3000;

　　7.Timer:1-9999 times.

　　Operation:

　　1.Firstly,prepare the accessories and test samples;

　　2.Open the transparent test box cover and allow clean air to flow into the empty box;

　　3.Turn on the instrument power and enter the LCD screen operation interface;

　　4.Before the experiment,confirm that there are less than 100 particles greater than or equal to 0.5 microns in the test box within 30 seconds;

　　5.If this requirement is not met,the step should be repeated;

　　6.After everything is ready,fix the sample on the rollers on both sides of the test box;

　　7.Reinstall the transparent test box cover;

　　8.On the LCD screen interface,set the number and running speed parameters;

　　9.Start running;

　　10.The sample is subjected to continuous twisting and compression movements inside the testing box;

　　11.When the set parameters are reached,the instrument automatically stops;

　　12.Open the test box cover and take out the sample;

　　13.After the experiment is completed,turn off the instrument;

　　14.When the sample is twisted during the test,air is extracted from the test box,and the particles in the air are counted and classified using a laser dust particle counter to evaluate the test results.
