Advantages and characteristics:

　　1.Have a strong after-sales service team;

　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;

　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.

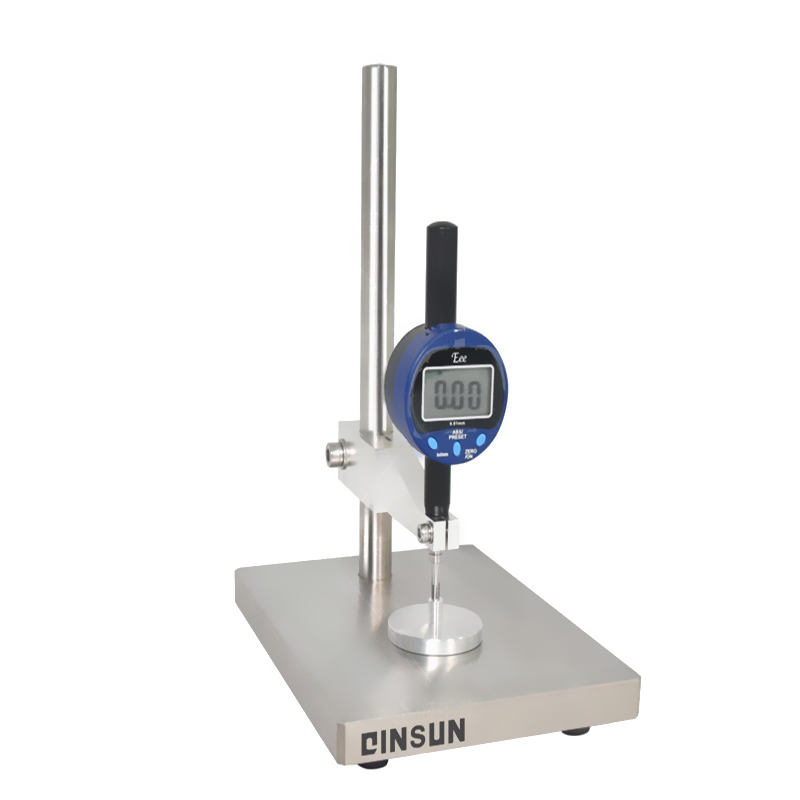

　　G034 Fabric Thickness Tester is used for measuring the thickness of various woven fabrics,knitted fabrics,non-woven fabrics,and geotextiles,and can also be used for measuring the thickness of other uniformly thin materials.

　　Compliant with standards:

　　GB/T 3820-1997

　　Technical parameters:

　　1.Measurement thickness range:0.1~10(mm);

　　2.Small scale value:0.01(mm);

　　3.Pressure foot area:1002000250010000(mm2);

　　4.Pressure foot diameter:11.28,50.46,56.42112.84(mm);

　　5.Weighting time:10s,30s;

　　6.Pressure foot descent speed:1.89(mm/s);

　　7.Measurement speed:After 10 seconds of pressing,it is about 2.1(times/minute),and after 30 seconds of pressing,it is about 1.2(times/minute).

　　Operation:

　　1.Firstly,prepare the accessories and test samples;

　　2.Install the digital display meter on the instrument and tighten it in place;

　　3.Install the presser foot on the instrument platform and tighten it in place;

　　4.Reset the numerical value of the digital display meter to zero;

　　5.Place the test sample under the pressure foot of the instrument;

　　6.Load the pressurized weight onto the presser foot;

　　7.The digital display shows the thickness of the sample;

　　8.Remove the weights and samples;

　　9.Change to another thickness of fabric and apply different pressures,then perform another measurement;

　　10.Place the test sample under the pressure foot of the instrument;

　　11.Load the pressurized weight onto the presser foot;

　　12.The digital display shows the thickness of the sample;

　　13.The instrument can replace the pressure foot and pressure weight according to the different measured objects,and the digital display range and accuracy of the equipment can be selected.
