Advantages and characteristics:

　　1.Have a strong after-sales service team;

　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;

　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.

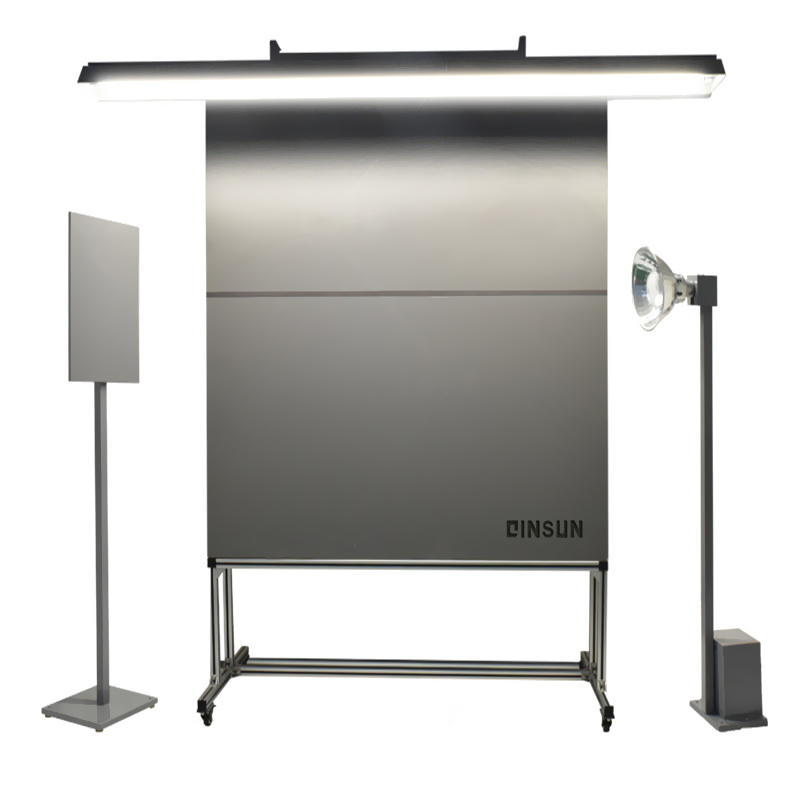

　　Clothing Rating Observation Board is used to evaluate the wrinkling,smoothness,and seam retention of clothing and other textile products after multiple washes and irons.

　　Compliant with standards:

　　AATCC 143/88,B&C 124/128/130

　　Operating instructions:

　　American standard clothing rating observation board_ The ready to wear observation board evaluates and grades the appearance of the sample by comparing it with the standard light source and evaluation board.During the evaluation,standard lighting and observation areas are used to grade the appearance of the sample.Lighting and evaluation are conducted in a darkroom,using only the device's own light source.Any reflected peripheral light will interfere with the rating results.

　　Technical features:

　　1.Equipped with optional brackets to support the three-dimensional specimen;

　　2.Optional light source switching,equipped with a cold light source of 2400mm(8ft)or 1200mm(4ft);

　　3.The device includes landing casters that are easy to move and can be provided in two standard sizes.

　　Technical parameters:

　　1.The rating board can use 2400mm(8 feet)or 1200mm(4 feet)cold white lights.

　　2.The device is controlled by an electronic switch and uses a high-frequency power supply control device.

　　3.The rating board can be installed on a wall or placed on a mobile cart.

　　4.Boundary dimension:1830mm×270mm×1830mm(length×wide×High

　　5.Weight:62kg(136lb)

　　Standard size:

　　1.Specification:40“×45.25“

　　2.Specification:52“×45.25“

　　Operation:

　　1.Firstly,prepare the accessories and test samples;

　　2.The rating observation board and floodlight are equipped with power switches respectively;

　　3.Equipped with standard cold light sources and floodlights,both of which are imported components to ensure compliance with standard requirements;

　　4.Configure a magnet fixing device to facilitate the installation of the sample;

　　5.When used in conjunction with sunshades and floodlights,it can evaluate the appearance of fabrics and detect defects and stains;

　　6.The rating observation board adopts a foot wheel design,which can move as a whole and is not limited to the usage environment;

　　7.The rating observation board can be used in conjunction with shading boards and floodlights to evaluate the wrinkling,smoothness,seam marks,and oil stains of textiles.It can also be used for comparing the appearance of finished garments and conducting spot checks on defects.
