Advantages and characteristics:

　　1.Have a strong after-sales service team;

　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;

　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.

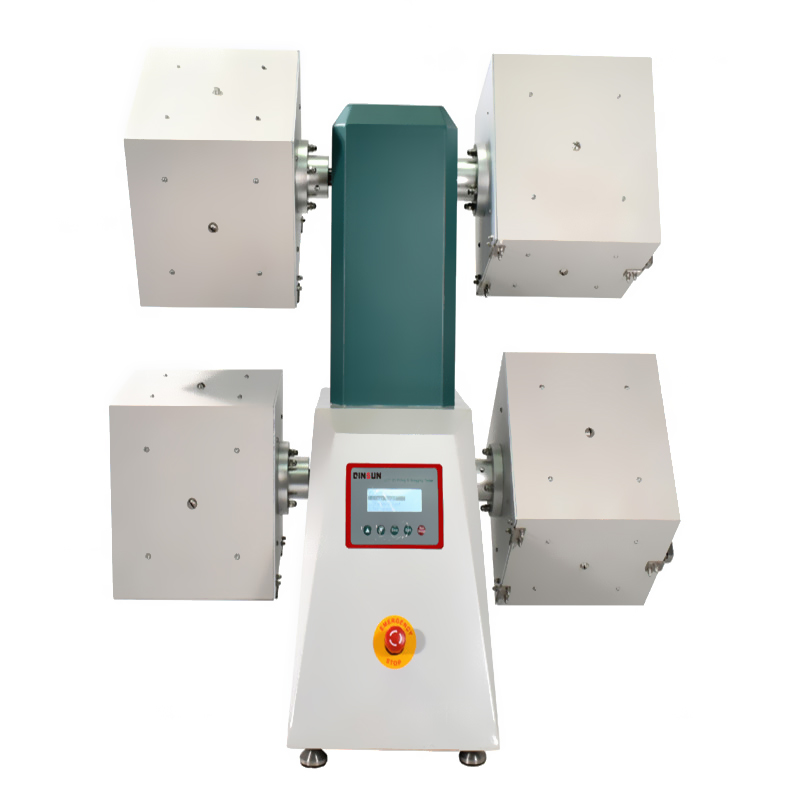

　　ICI Pilling and Snagging Resistance Tester is used for the rolling friction pilling test of sparse needle combed fabrics and other fabrics that are prone to pilling,to evaluate their pilling level and snagging resistance under no pressure conditions.

　　Applicable standards:

　　GB/T4802.3,ISO12945.1,BS5811,JISL1076,IWSTM152

　　Main parameters:

　　1.Number of pilling boxes:2 or 4;

　　2.Box size:235×two hundred and thirty-five×235mm;

　　3.Box speed:60±2r/min;

　　4.Counting range:1-99999 times;

　　5.Sample tube:AppearanceΦthirty-one point five×140mm,4 pieces/box;

　　6.Power supply:AC220V±10%,50Hz,120W.

　　Operation:

　　1.Firstly,prepare the accessories and test samples;

　　2.Fix the test sample in a PU fixed sample tube;

　　3.Place the solid sample tube containing the sample into the testing box;

　　4.Turn on the power switch of the instrument and enter the operation interface;

　　5.Set parameters such as operating speed and number of turns;

　　6.Press the[Start]button,and the test box will rotate in a certain speed cycle;

　　7.Automatically stop when the set number of turns is reached;

　　8.Open the test box cover and take out the sample;

　　9.After the test is completed,turn off the instrument;

　　10.At the end of the experiment,take the sample for analysis and comparison to evaluate the material's surface resistance to pilling,pilling,and snagging.
