Advantages and characteristics:

　　1.Have a strong after-sales service team;

　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;

　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.

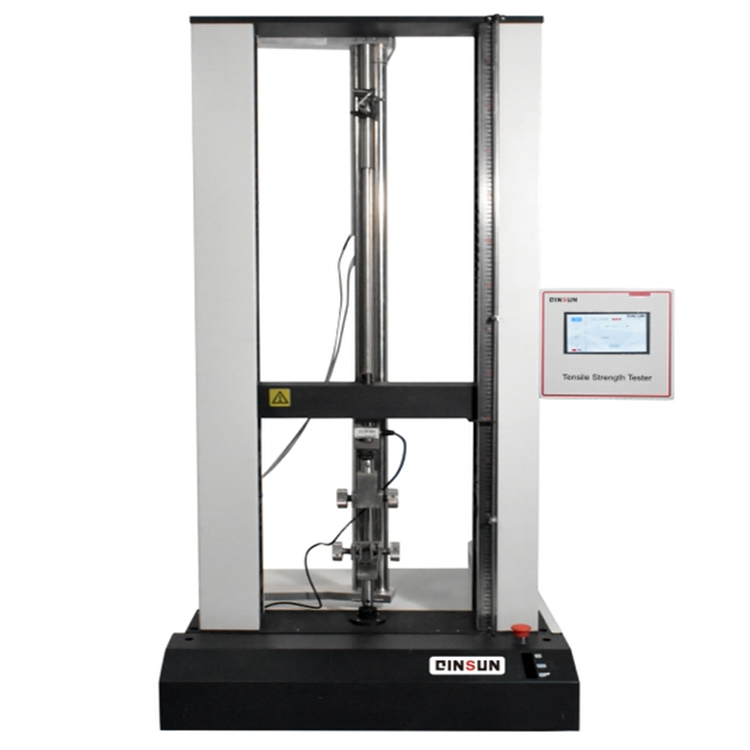

　　G305W Fabric Strength Tester is used to test the mechanical properties of rubber,plastic,leather,metal,wire,paper,packaging,building materials,petrochemical,electrical,geotechnical and other materials,including tensile,tear,top breaking,constant elongation,constant load,elasticity,seam slip,peeling,etc.

　　Functional items:

　　Function 1:Timed stretching

　　Function 2:Constant speed stretching,relaxation stretching,relaxation pre tension

　　Function 3:Constant elongation stretching

　　Function 4:Constant load stretching

　　Function 5:Tear(peel)

　　Function 6:Breakthrough Experiment

　　Applicable standards:

　　ASTMD5034,ASTMD2261,ASTMD434,GB/T3923,GB/T3917,GB/T13772,FZ/T80007.1,ISO5081,DIN53859,DIN53858,BS3320,4303,2576,2543,etc

　　Operation steps:

　　Firstly,prepare the accessories and test samples;

　　2.Turn on the power switch of the instrument;

　　3.Enter the LCD screen operation interface;

　　4.Select standard mode according to testing requirements;

　　5.Set parameters such as elongation at break,spacing length,and rate;

　　6.Press the【Up】and【Down】buttons on the screen to manually adjust the measuring distance of the fixture;

　　7.Lower the fixture to a certain distance(according to the length of the sample);

　　8.Place the prepared sample in the fixture and tighten it in place;

　　9.Click the[Start]button;

　　10.The sample is stretched,and when a certain force value is reached,the sample is torn;

　　11.Obtain the data curve graph and click save;

　　12.Conduct testing on the next set of samples;

　　13.Obtain the data curve again;

　　14.Click on[Data]to view the saved data;

　　15.Remove the sample;

　　16.After the experiment is completed,turn off the instrument.
