Advantages and characteristics:

　　1.Have a strong after-sales service team;

　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;

　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.

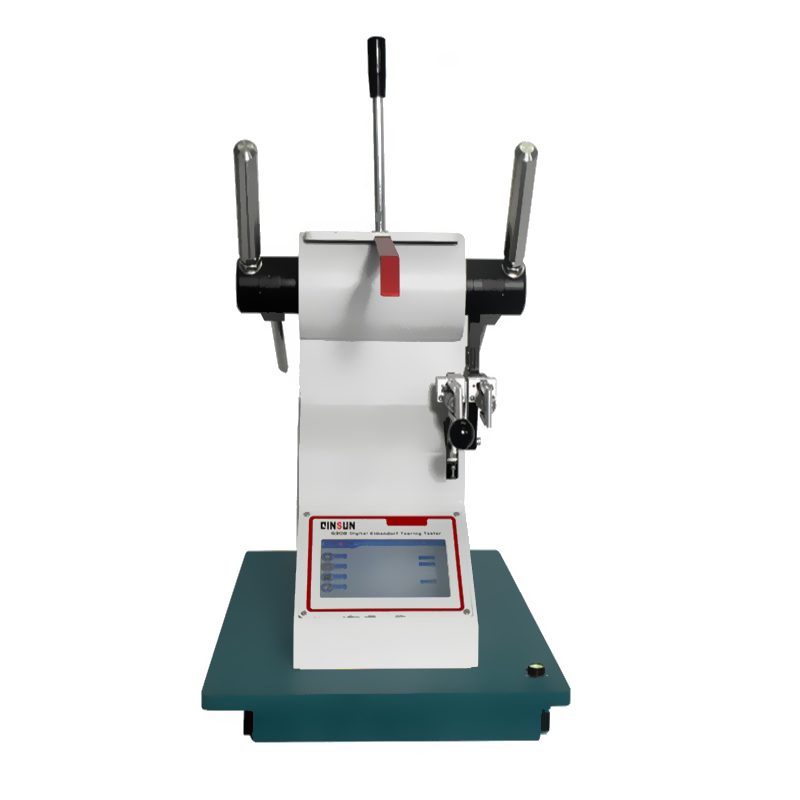

　　G308 Double Pendulum Tear Strength Tester uses the Elmendorf method to measure the tear strength of various fabrics and evaluate their tear resistance performance.

　　Compliant with standards:

　　ASTM D1424 D689;NEXT 17;M&S P29;BE EN ISO 13937,4674;BS 4468;DIN EN 21974;GB/T 3917.1;ISO 1974

　　Operation:

　　Firstly,prepare the accessories and test samples;

　　2.Turn on the instrument switch and enter the LCD screen operation interface;

　　3.Select the appropriate test range according to the testing requirements;

　　4.Place the corresponding weights on the instrument bearings;

　　5.The system automatically calibrates the weight of the weights;

　　6.Press the buttons on both sides of the bottom of the instrument simultaneously;

　　7.Rotate the double pendulum;

　　8.After calibration is completed,enter the testing interface and click on"Test";

　　9.Cut the sample according to the sampling template and install it in the fixture;

　　10.Cut a tongue shaped small opening on the sample;

　　11.Simultaneously press the buttons on both sides of the bottom of the instrument;

　　12.The specimen is torn under a specific impact force;

　　13.The data results are displayed on the display screen,and can be viewed after saving;

　　14.Remove the sample;

　　15.After the experiment is completed,turn off the instrument;

　　16.After the experiment,analyze the force required for the specimen to expand a certain length under the specified load and crack,in order to evaluate the material's tear resistance performance.
