Advantages and characteristics:

　　1.Have a strong after-sales service team;

　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;

　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.

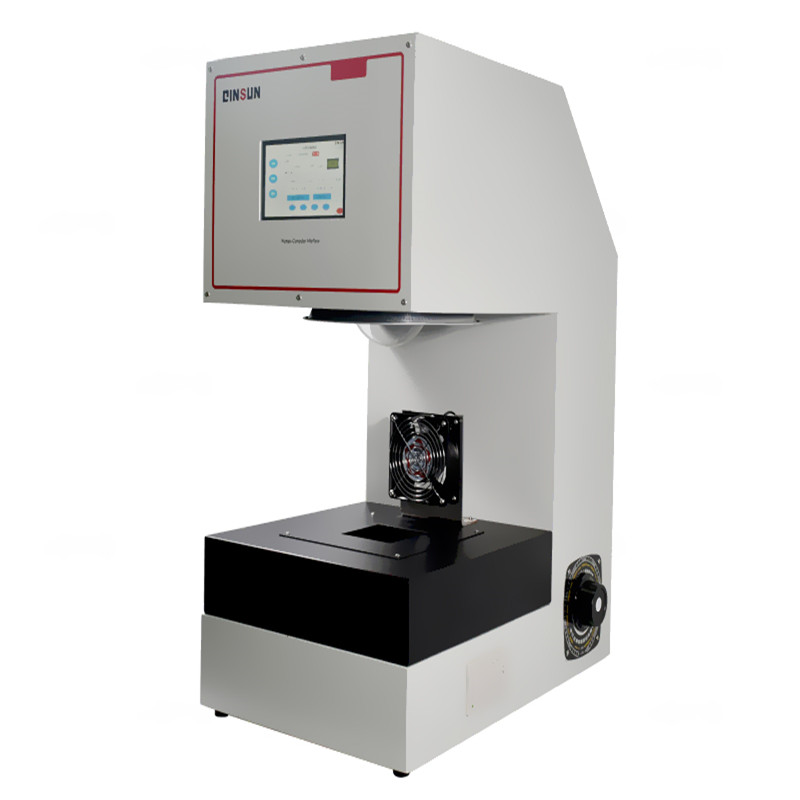

　　G376 Fabric Shading Tester is used to measure the light transmittance of a fabric under a certain amount of strong light irradiation through the sample,and to calculate the shading rate by comparing it with the illuminance without the sample.

　　Compliant with standards:

　　FZ/T 62025-2015,JIS L1055 and other standards

　　Main parameters:

　　1.Light source:100V,500W;

　　2.Illuminometer:0.01 lx~199 000 lx(experimental range 0.01 lx~100 000 lx);

　　3.Illumination meter accuracy±2%;

　　4.Power supply:AC220V,50Hz,80W;

　　5.Weight:30kg.

　　Usually,after adjusting the brightness of the light source to 10000(1X),installing the sample,measuring the illuminance transmitted by the sample,and calculating the shading rate(%)according to the following formula

　　Shading rate(%)=(1-I1/I0)×one hundred

　　I1:Illumination after installing the sample(lx)

　　I0:Illuminance without installed specimen(lx)

　　Operation:

　　Firstly,prepare the accessories and test samples;

　　2.Set the lighting intensity and click the light on button;

　　3.Adjust the light source intensity on the side of the machine to approach the lighting setting value;

　　4.Place the test sample under the light source;

　　5.Click on the end of the experiment to obtain the transmittance and shading values;

　　6.Click the save button to view the data;

　　7.Print out the paper and check the values;

　　8.Turn off the lights and end the test.
