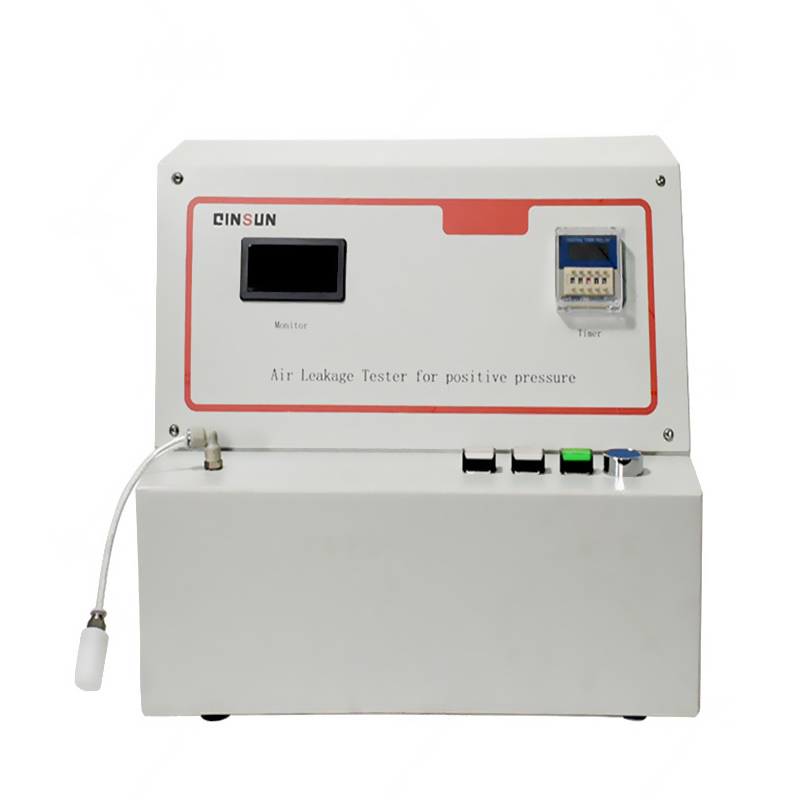

M101 Infusion Set Leakage Positive Pressure Tester is used to test the positive pressure of medical device catheters such as infusion sets,blood transfusion sets,infusion needles,pipelines,catheters,and quick connectors.It is designed according to relevant clauses in the national standards for medical devices.

　　Compliant with standards:

　　GB8368-2005 Disposable Infusion Set,Gravity Infusion Type

　　Technical parameters:

　　1.Working temperature:5-40℃;

　　2.Relative humidity:45-80%;

　　3.Power supply voltage:220V±22V;

　　4.Grid frequency:50Hz±1HZ;

　　5.Positive pressure output range:120kPa~160kPa(adjustable),LED digital display,error not greater than±5%;

　　6.Test duration:1s~60s(adjustable),LED digital display,error not greater than±1s;

　　7.Maintain positive pressure in the measurement system:Do not drop by 1kPa within 3 minutes;

　　8.Pressure range:0-69Kpa;

　　9.Set time:0-999S.

　　Operation:

　　1.Firstly,prepare the accessories and test samples;

　　2.Seal the connection between the syringe and the test head;

　　3.Adjust air pressure parameters;

　　4.Set the timer time;

　　5.The pressure measurement of the air pump begins;

　　6.Obtain the sealing performance parameters of the syringe;

　　7.The test is over.
