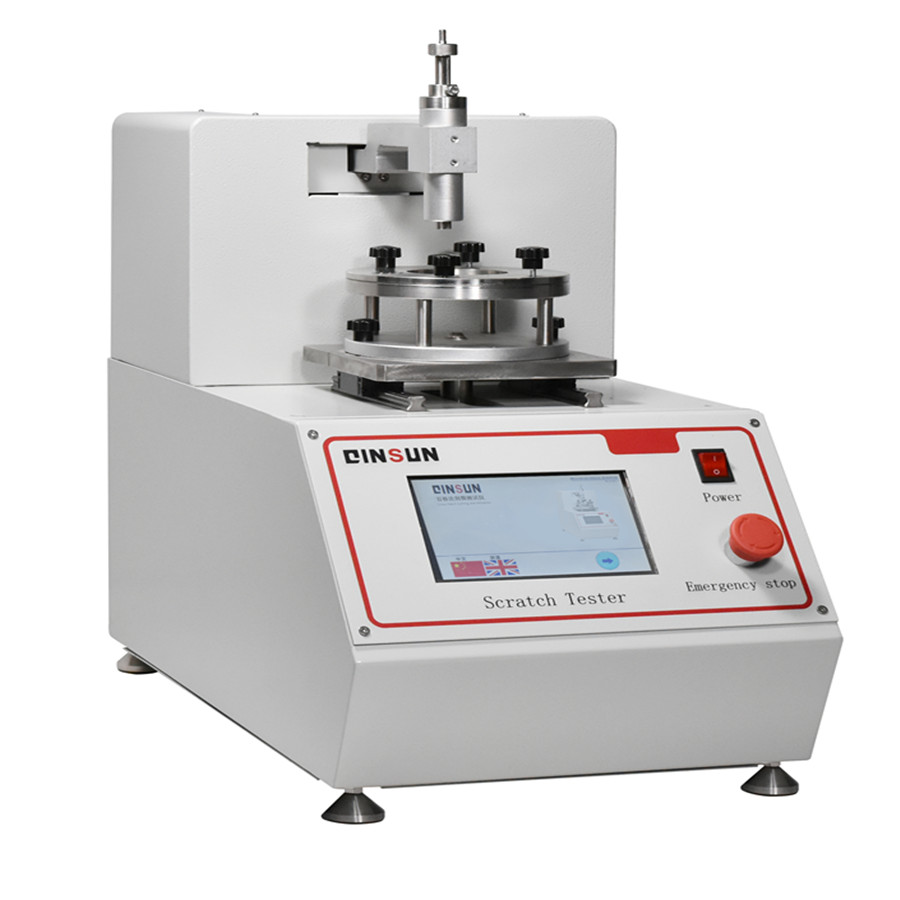

The hundred grid cross scratch tester is used to test the scratch resistance and scratch performance of automotive interior and exterior plastic parts.

　　Technical parameters:

　　1.Instrument power supply:115/230VAC,50/60Hz(please specify voltage when ordering)

　　2.Equipment power:400W

　　3.Test piece specification:80×50mm

　　4.Sample thickness:0.5-20mm

　　5.Standard load range:2-50N(2N carry)

　　6.Special load range:1-10N(rounded to 1N)(must be matched with optional accessories)

　　7.Scribed path:25 or 40mm

　　8.Scratching speed:1m/min or 40mm/s

　　Applicable standards:

　　PV 3952,PV 3974,GMW 14688,VDA621-411,EN ISO 2409,ASTM D3359
