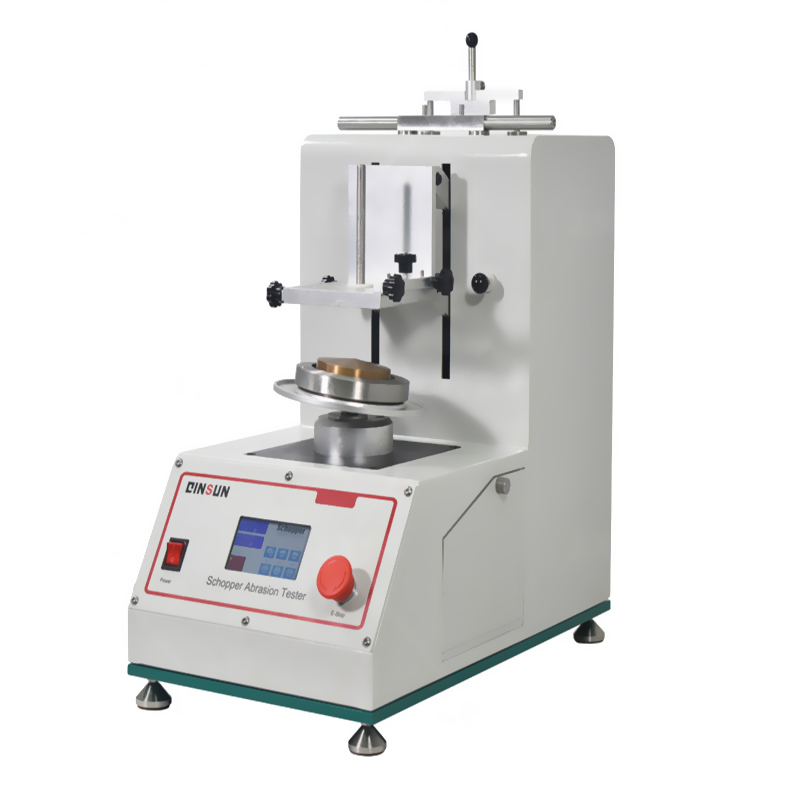

The schopper abrasion tester tests the surface changes of a sample of fabric after friction or wear tests,and is commonly used for testing automotive interior materials,using a rotational wear method.

　　Applicable standards:

　　DIN53863Part2"Wear resistance test(rotational wear test)on textile surfaces",GMEStandard60345,GMWStandard3283,PV3908

　　Main parameters:

　　01.Rotation speed:75L/min;

　　02.The cone angle is 166°;

　　03.The tilt angle of the test head bracket is 7°;

　　04.Sample size:100cm2;

　　05.Test area:50cm2;

　　06.The sample arch height is adjustable,equipped with measuring accessories,with a range of 0-10mm;

　　07.Sample downward pressure:adjustable from 0.5N to 25N;

　　08.A set of load weights:50g,100g,250g,500g,1000g,1500g;

　　09.External dimensions:325 x 565 x 560mm;

　　10.Power supply:115/240V,50/60Hz,130W.
