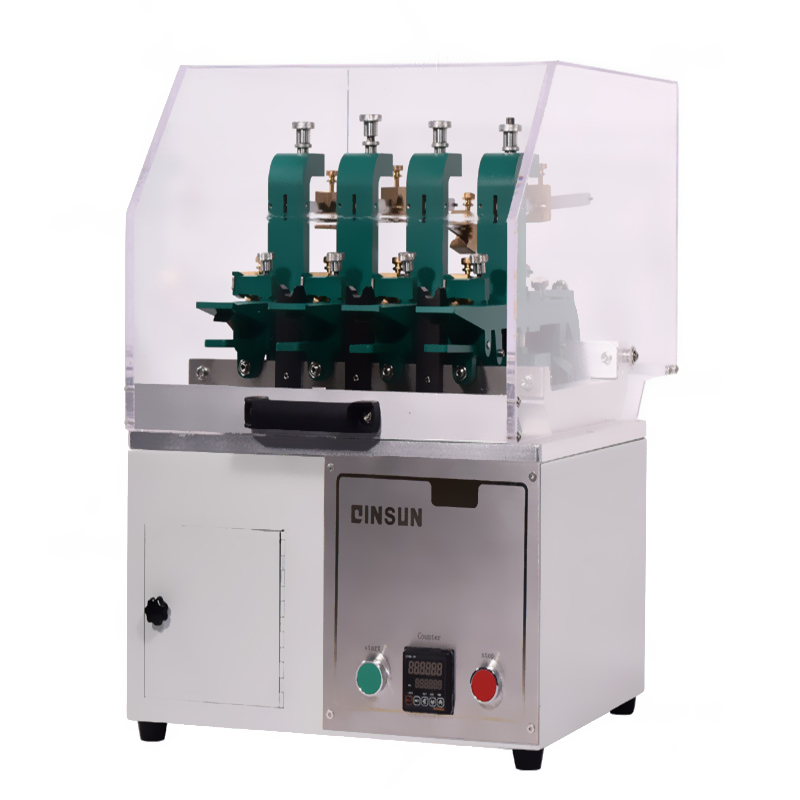

Oscillatory wear resistance tester is suitable for testing the wear resistance of textiles used in automotive decoration and furniture,detecting the wear resistance of fabrics to standard friction media or curved surface friction movements such as metal mesh.

　　Compliant with standards:

　　ASTM D4157,ASTM D3597,FED-STD-191/5304,SAE J948,SAE J1530,GM 2756M,TOYOTA,BS EN ISO 12402-2

　　Main parameters:

　　1.Test head:4 sets;

　　2.Friction table:curved surface-R100mm,length-40mm;

　　3.Swinging arc:76±2mm;

　　4.Friction rate:90±1/min(double friction);

　　5.Tension adjustment weight:340g(the force applied to the sample can be adjusted from 4.45 to 26.7N);

　　6.Load adjustment weight:150g(adjusted from 4.45 to 15.575N);

　　7.Sample tension:17.8N(adjustable);

　　8.Sample load:13.4N(adjustable);

　　9.Sponge rubber pressure pad:50×50mm(±1mm);

　　10.Sample size:245 x 73mm;

　　11.Boundary dimensions:50 x 50 x 60cm(length x width x height);

　　12.Weight:75kg;

　　13.Power supply:220V,50Hz,0.05A.

　　Accessories consumables:

　　1.Rubber pads(8 pieces/pack);

　　2.Metal mesh Wyzenbeek(4 pieces/pack);

　　3.Standard abrasive#10 cotton canvas-60 inches x 5 yards;

　　4.Fine sandpaper,clean rubber pads;

　　5.Nylon brush with medium soft bristles.
