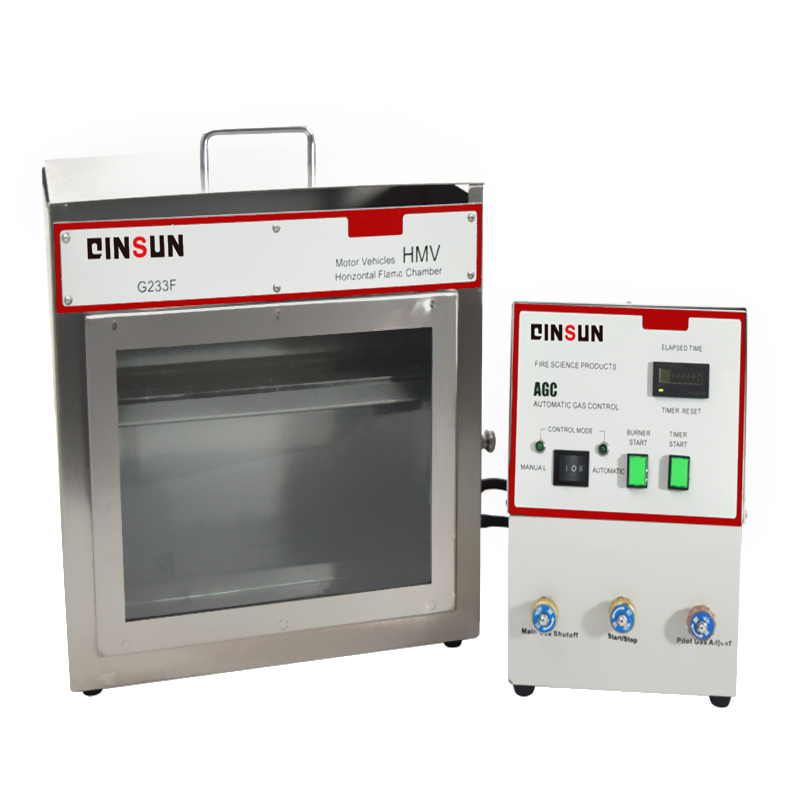

The flame retardant tester for automotive interior materials can detect the relative combustion rate and flame retardancy of textiles,especially automotive interior decorative fabrics.This instrument is equipped with a sealed stainless steel combustion chamber,observation window,sample holder,and door type burner.The automatic gas control system includes an electromagnetic controlled gas valve,an automatic ignition timer,and a controller.

　　Meets standards:

　　GB8410，ISO 3795，FMVSS 302，DIN 75200，SAE J369，ASTM D5132，JIS D1201 BSAU 1690

　　Main parameters:

　　1.Fire nozzle diameter:9.5mm

　　2.Flame height:38mm±2

　　3.Sample holder:360 x 100mm,inner frame size 330 x 50mm,thickness 9mm

　　4.Lower sample clamp:The spacing between metal wires is 25mm

　　5.Marking lines:38mm,138mm,and 292mm respectively from the ignition point of the sample

　　6.Igniter:The top of the nozzle is 19mm away from the sample surface
