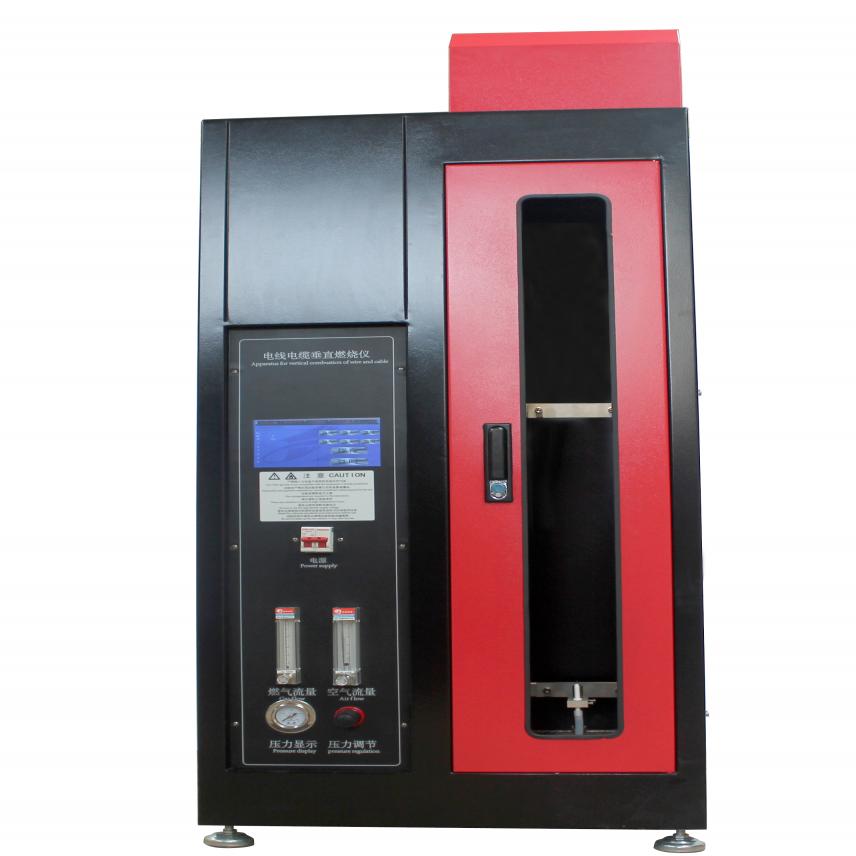

The single wire and cable vertical combustion tester is suitable for the research,production,and quality inspection departments of electrical and electronic products and their components such as lighting equipment,low-voltage appliances,household appliances,machine tool appliances,motors,electric tools,electronic instruments,electrical instruments,electrical connectors,and accessories.It mainly evaluates the combustible performance of a single wire and cable with a conductor diameter greater than 0.8mm or a cross-sectional area not less than 0.5mm2.

　　Applicable standards:

　　IEC 60332,GB/T 19666-2005,GB/T 12972,GB/T 13033,MT818,MT386,UL 1581-2006 Section 1060(Vertical and FT1 tests),Section 1061(Cable combustion test),Section 1080(VW-1 combustion test),Section 1100(Horizontal specimen/FT2 combustion test)

　　Main parameters:

　　1.Burner:Inner diameterΦ9.5mm±0.5mm

　　2.Test inclination angle:The 45°style crossbeam can be moved back and forth,and the position of the Bunsen lamp can be adjusted according to the thickness of the style

　　3.Flame height:adjustable from 20mm±2mm to 190mm±1mm

　　4.Flame application time:0-999.9s±0.1s adjustable

　　5.Combustion gas:95%propane gas(liquefied petroleum gas can generally be used instead)

　　6.Wire and cable length:600±25mm

　　7.Outer diameter of wires and cables:conductor diameter greater than 0.8mm or cross-sectional area greater than 0.5mm2

　　8.Test environment:No wind and temperature is(23±10)℃

　　9.Standard power of combustion nozzle:1KW

　　10.Power supply voltage:220V/50Hz

　　11.Gas flow rate:0-1L/min

　　12.Air flow rate:1.5-15L/min
