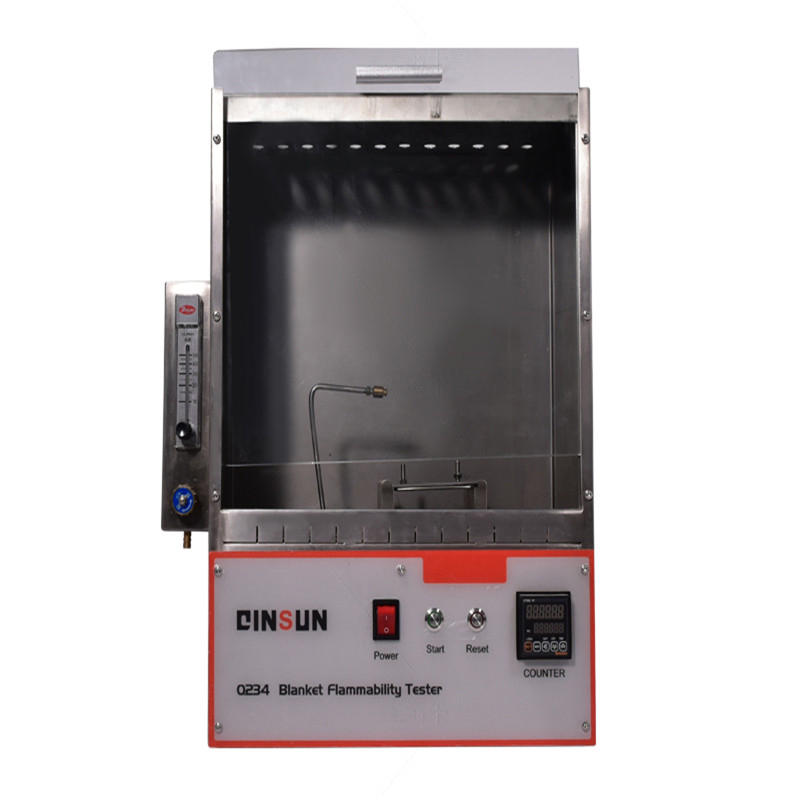

The bed blanket combustion tester is used to measure the flame retardancy of bedding products, including sheets, blankets, mattresses, pillows, duvet blankets, and plush fabric products used to cover the bed.

　　Technical features:

　　1. Stainless steel box, length 370mm x width 220mm x height 510mm, equipped with transparent observation windows;

　　2. 18 needle flame, flame length adjustable;

　　3. The ignition time can be freely set; High degree of automation;

　　4. Automatic timing with a timing accuracy of 0.1s;

　　5. High precision needle valve for precise control of gas flow rate and flame height;

　　6. Flowmeter range: 0-60cc/min;

　　7. Equipped with a butane tank gas supply device, without the need for a large gas tank or gas tank;

　　8. Provide bristle device, sample holder, and standard stainless steel sample clip;

　　9. Power supply: 220V, 50Hz.

　　Testing principle:

　　Within the specified time, burn the surface of the sample with a standardized flame to observe the degree of combustion, damage, or discoloration of the standard test paper, and then grade and evaluate the test fabric.

　　Compliant with standards:

　　American Society for Materials ASTMD4151
