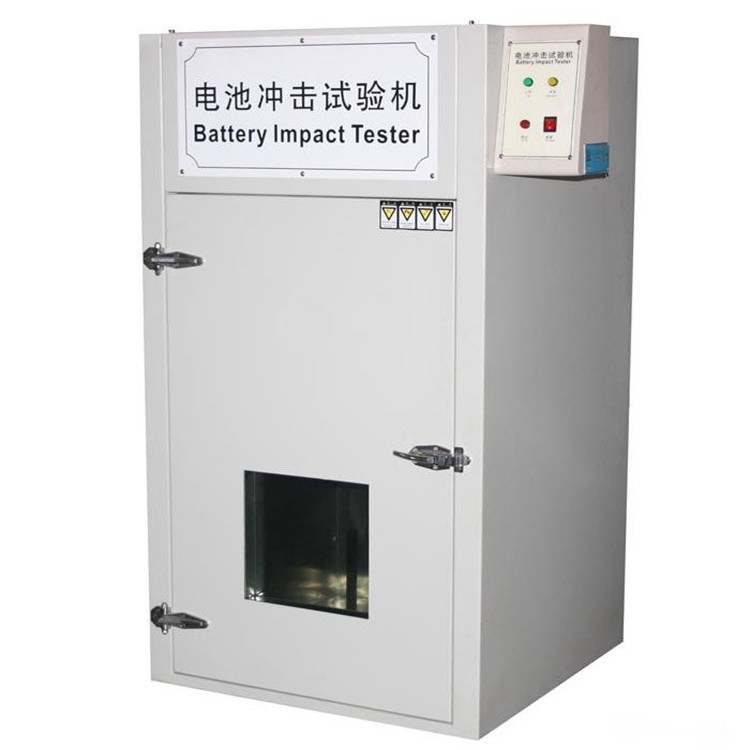

Battery impact testing machine test sample should be placed on a flat surface, with a rod with a diameter of 15.8mm (5/8 inches) cross placed at the center of the sample. A 9.1kg or 10kg weight should be dropped from a certain height (61CM or 100CM) onto the sample.

　　Compliant with standards:

　　UN38.3, SJ/T11169-1998, SJ/T11170-1998, UL1642:1995, UL2054:1997, QC/T 743-2006, QC/T 742-2006, QC/T 744-2006, GB/T18287-2000, GB 8897.4-2002, idt IEC60086-4:2000 and other standards.

　　Main parameters:

　　1. Ball weight: 9.1kg ± 0.46Kg (20 ± 1 pound) or 10Kg

　　2. Impact height: 610 mm or 1000mm (can be customized according to different customer needs)

　　3. Impact method: Lift the falling ball to a certain height and release it. The falling ball falls freely in the vertical direction without tilting or shaking

　　4. Horizontal bar: 15.8mm (5/8 inches) steel rod

　　5. Air outlet: located 150mm on the back of the box

　　Usage conditions:

　　1. Operating voltage: 220V ± 10%, 50HZ

　　2. Usage environment: It is allowed to use in an environment of 0~30 ℃

　　3. Performance guarantee environment: 5~25 ℃

　　Main parameters:

　　1. Ball weight: 9.1kg ± 0.46Kg (20 ± 1 pound) or 10Kg

　　2. Impact height: 610 mm or 1000mm (can be customized according to different customer needs)

　　3. Impact method: Lift the falling ball to a certain height and release it. The falling ball falls freely in the vertical direction without tilting or shaking

　　4. Horizontal bar: 15.8mm (5/8 inches) steel rod

　　5. Air outlet: located 150mm on the back of the box
