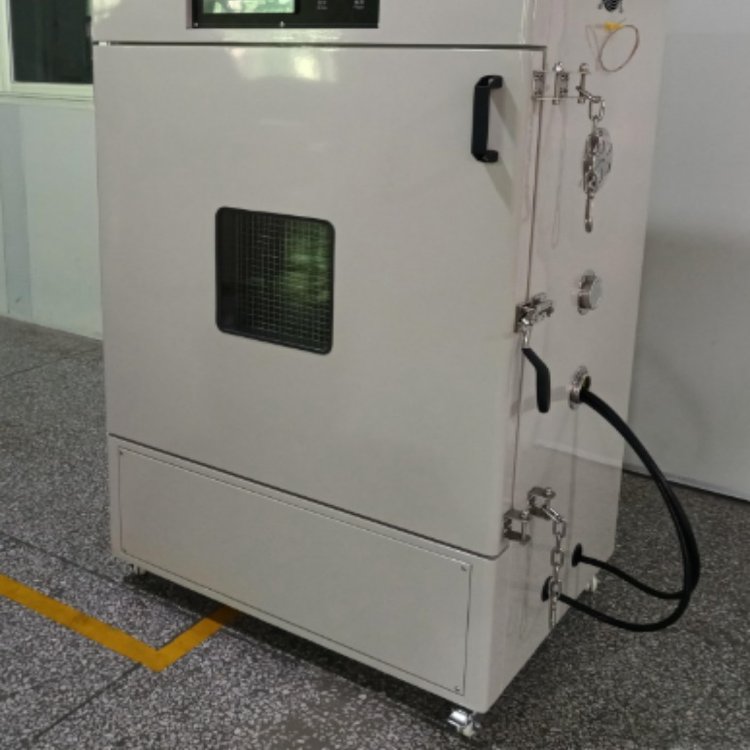

Battery short circuit testing machine parameters

  The battery short circuit testing machine is used to test whether the battery will explode and catch fire when short circuited with a certain resistance, and display the short circuited current through relevant instruments.

  Compliant with standards:

  GB/T 31485-2015, GB/T 31241-2014, UN38.3, IEC62133, QC/T743-201X, GB/T 8897.4-2008

  Main parameters:

  1. Working voltage: AC 220V 50Hz 60Hz

  2. Impulse voltage: AC 1kV/1.2-50 μ S (peak) 1min

  3. Test voltage: 0-100V

  4. DC response time: ≤ 5 μ S

  5. Short circuit current: 500A, 1000A, 2 specifications

  6. Device internal resistance: ≤ 5m Ω

  7. Remote control distance: 7m without solid barrier

  8. Action time: suction time/release time ≤ 30ms

  9. Action characteristics: cold suction voltage not exceeding 66% Us, cold release voltage not exceeding 30% Us, not exceeding 5% Us


  The battery short circuit testing machine is used to test whether the battery will explode and catch fire when short circuited with a certain resistance, and display the short circuited current through relevant instruments.

  Main parameters:

  1. Working voltage: AC 220V 50Hz 60Hz

  2. Impulse voltage: AC 1kV/1.2-50 μ S (peak) 1min

  3. Test voltage: 0-100V

  4. DC response time: ≤ 5 μ S

  5. Short circuit current: 500A, 1000A, 2 specifications

  6. Device internal resistance: ≤ 5m Ω

  7. Remote control distance: 7m without solid barrier

  8. Action time: suction time/release time ≤ 30ms

  9. Action characteristics: cold suction voltage not exceeding 66% Us, cold release voltage not exceeding 30% Us, not exceeding 5% Us

  Compliant with standards:

  GB/T 31485-2015, GB/T 31241-2014, UN38.3, IEC62133, QC/T743-201X, GB/T 8897.4-2008
