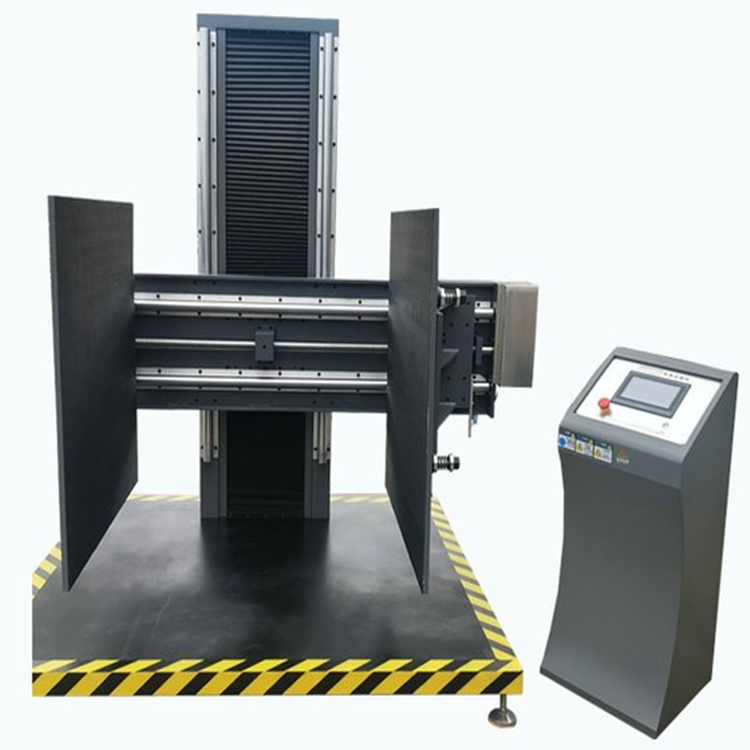

Carton clamping force testing machine tests the deformation of the product packaging under horizontal pressure during transportation and storage, as well as the protective ability of the packaging to the inner packaging material, in order to improve packaging design and apply to all product packaging testing and verification.

　　Applicable standards:

　　ASTM D6055, SEARS, enterprise standards, or customized according to customer non-standard requirements

　　Main parameters:

　　1. Sample shape: parallelepiped transport packaging

　　2. Test weight: 10-300kg

　　3. Clamping pressure: 400-3000Lb (adjustable)

　　4. Height adjustment of clamping plate: adjustable from 0 to 1000mm

　　5. Lifting speed: adjustable from 10 to 600mm/min

　　6. Clamping speed: 10-50mm/min adjustable

　　7. Expansion and contraction width of the splint: 200-2000mm

　　8. Bottom plate size: 2200 x 2100mm

　　9. Strength accuracy: Standard 1.6 level

　　Applicable standards:

　　ASTM D6055, SEARS, enterprise standards, or customized according to customer non-standard requirements

　　Main parameters:

　　1. Sample shape: parallelepiped transport packaging

　　2. Test weight: 10-300kg

　　3. Clamping pressure: 400-3000Lb (adjustable)

　　4. Height adjustment of clamping plate: adjustable from 0 to 1000mm

　　5. Lifting speed: adjustable from 10 to 600mm/min

　　6. Clamping speed: 10-50mm/min adjustable

　　7. Expansion and contraction width of the splint: 200-2000mm

　　8. Bottom plate size: 2200 x 2100mm

　　9. Strength accuracy: Standard 1.6 level
