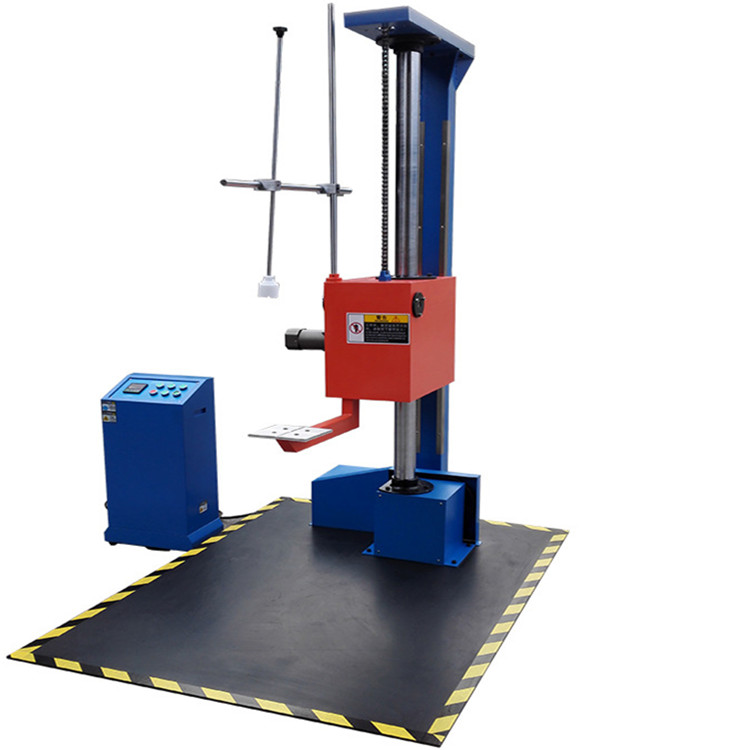

Box drop testing machine is equipped with a digital height display and uses a decoder for height tracking. It is used to test the damage of product packaging caused by falling, and to evaluate the impact strength during transportation and handling. It is used to conduct free drop tests on the surface, corners, and edges of packaging.

　　Compliant with standards:

　　ISO 248, JIS Z0202-87, GB/T 4857.5-92

　　Main parameters:

　　1. Drop height (mm): 300-1500;

　　2. Measurement weight (kg): not exceeding 100KG;

　　3. Sample size (mm): 800 × 800 × 800;

　　4. Impact panel size (mm): 1700 x 1200;

　　5. Arm size (mm): 160 x 180 x 8;

　　6. Drop error: < 1 °;

　　7. Drop height error (mm): ± 10;

　　8. Dimensions of the test bench (mm): approximately 1700 x 1200 x 2350, and dimensions of the control box (length, width, height): approximately 350 * 300 * 800mm.

　　Compliant with standards:

　　ISO 248, JIS Z0202-87, GB/T 4857.5-92

　　Main parameters:

　　1. Drop height (mm): 300-1500;

　　2. Measurement weight (kg): not exceeding 100KG;

　　3. Sample size (mm): 800 × 800 × 800;

　　4. Impact panel size (mm): 1700 x 1200;

　　5. Arm size (mm): 160 x 180 x 8;

　　6. Drop error: < 1 °;

　　7. Drop height error (mm): ± 10;

　　8. Dimensions of the test bench (mm): approximately 1700 x 1200 x 2350, and dimensions of the control box (length, width, height): approximately 350 * 300 * 800mm.
