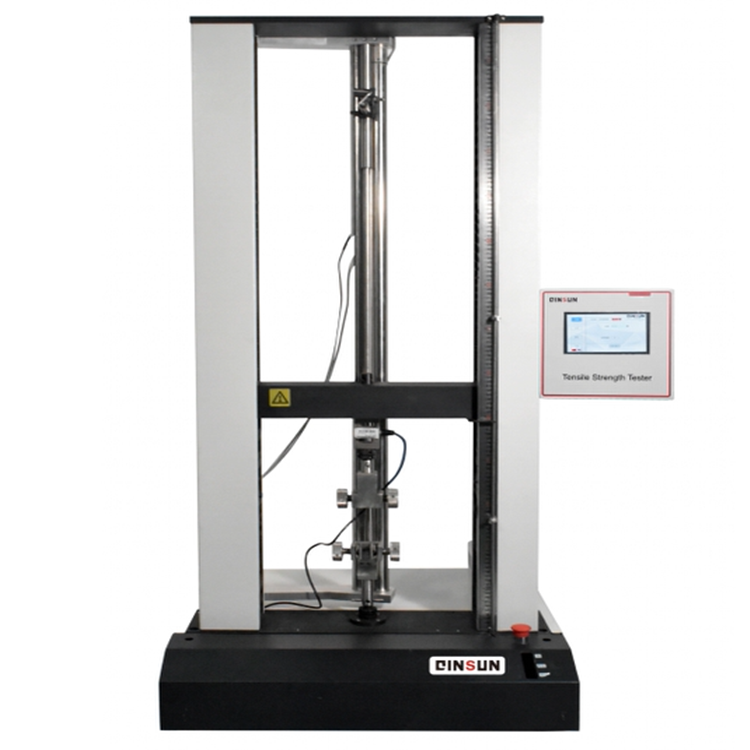

The plastic film tensile testing machine is a testing equipment independently developed and produced by our company Shanghai Qianshi Precision Electromechanical Technology Co., Ltd. It is mainly used for testing the mechanical properties of materials such as films, fibers, and paper, such as tension, compression, and bending. It is a type of equipment used for testing the mechanical properties of materials.

　　Applicable standards:

　　ASTM D5034, ASTM D2261, ASTM D434, GB/T3923, GB/T3917, GB/T13772, FZ/T80007.1, ISO5081, DIN53859, DIN53858, BS3320, 4303, 2576, 2543

　　Main parameters:

　　1. Force measurement range: 100N, 2500N, 5000N, optional

　　2. Stretching speed: 2mm/min~1200mm/min, any

　　3. Return speed: 2mm/min~1000mm/min

　　4. Timed stretching: 20s ± 3s, 30s ± 5s optional

　　5. Set stretching times: 99 times

　　6. Average number of groups: 2-30 times (longitudinal and latitudinal averages can be calculated separately)

　　7. Extension range: The elongation rate can reach 350% at a spacing of 200mm

　　8. Spacing: Any adjustment between 25 and 500mm

　　Application field:

　　Thin film materials: used to test the elastic modulus, yield strength, maximum tensile strength and other parameters of thin film materials, providing important technical support for the research and production of thin film materials.

　　Fiber materials: used to test the strength, elasticity and other parameters of fiber materials, providing important technical support for the research and production of fiber materials.

　　Paper material: used to test the tensile strength, compressive strength and other parameters of paper, providing important technical support for the research and production of paper.

　　Other materials: Suitable for testing the mechanical properties of various materials, including plastics, rubber, metals, and other materials.

　　Technical features:

　　High precision measurement: By using high-precision electronic control systems and sensors, the mechanical performance parameters of materials can be accurately measured, ensuring the reliability of test results.

　　Automated operation: By adopting automated operation methods, the mechanical performance testing of materials can be quickly and accurately completed, greatly improving testing efficiency.

　　Multi functional testing: The thin film electronic tensile testing machine can perform various mechanical performance tests such as tension, compression, and bending, suitable for testing needs of different materials.

　　High safety: Equipped with electronic limit and overload protection functions, it can effectively protect the safety of equipment and testing personnel.

　　Easy maintenance: With a simple structure and convenient maintenance, it can reduce usage costs.
