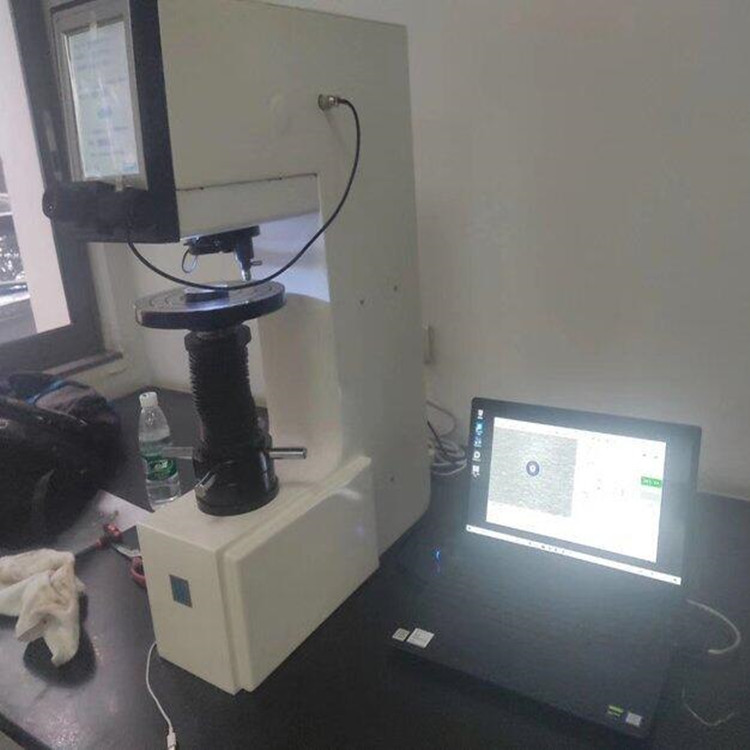

The Brinell hardness tester applies the principle of Brinell hardness measurement and can directly measure Brinell hardness. It is a testing equipment independently developed and produced by our company Shanghai Qianshi Precision Electromechanical Technology Co., Ltd. It is suitable for materials such as unhardened steel, cast iron, non-ferrous metals, and softer bearing alloys. Widely used in industrial fields such as metallurgy, forging, casting, unhardened steel and non-ferrous metals, laboratories, colleges and research institutions.

　　Main optional features:

　　Long "V-shaped" sample stage, 80mm x 185mm;

　　Standard hardness blocks for other hardness ranges;

　　Φ 5mm hard alloy ball indenter;

　　Φ 2.5mm hard alloy ball indenter;

　　Φ 10mm hard alloy ball;

　　Φ 5mm hard alloy ball;

　　Φ 2.5mm hard alloy ball.

　　Technical parameters:

　　Test force: 3000kgf (29400N), 1500Kgf (14700N), 1000KGF (9800N), 750KGF (7355N), 500KGF (4900N), 250KGF (2452N), 187.5KGF (1839N), 125KGF (1226N), 100KGF (980N), 62.5KGF (612.9N)

　　Test force holding time: 2-99 seconds, adjustable

　　Pressure ball diameter: 10mm, 5mm, 2.5mm

　　Measurement range: (3.18-653) HBW

　　Sample allowable height: 230mm

　　Distance from the center of the pressure head to the machine wall: 140mm

　　Advantages and characteristics:

　　1. Have a strong after-sales service team;

　　2. Able to handle various issues in a timely and fast manner, relieving customers of any worries they may have;

　　3. Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4. Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.
