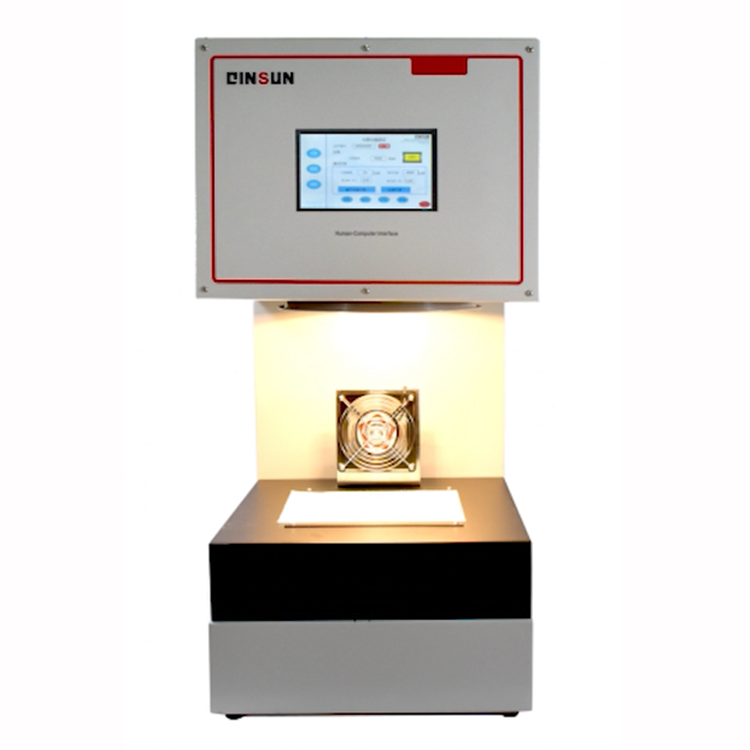

Textile transparency tester technical indicators

  The textile transmittance tester is used to measure the total visible light transmittance of fabrics and is suitable for sheet textile products.

  Applicable standards:

  FZ/T 01009-2008 Textiles - Determination of light transmittance of fabrics

  FZ/T 62025-2015 Rolling Curtain Window Decoration Fabric

  FZ/T 62011.1-2016 Fabric Products: Curtain

  JIS L1005-2009


  Technical indicators:

  1. Wavelength range: 380nm~780nm

  2. Wavelength error: ≤ ± 3 nm

  3. Spectral bandwidth: 6nm

  4. Wavelength interval: 10nm

  5. Transmission ratio range: 0.0~199.9%

  Technical features:

  1. Capable of measuring spectral transmittance;

  2. Integral ball with a pass and photodetector;

  3. Having an optical device capable of generating dual beams;

  4. The angle of deviation between the incident light of two parallel beams and their beam axis shall not exceed 5 °;

  5. Capable of scanning at the required wavelength interval within the wavelength range of 380nm to 780nm;

  6. A specimen clamp that maintains the flatness of the specimen in a tension free state.

  Applicable standards:

  FZ/T 01009-2008 Textiles - Determination of light transmittance of fabrics

  FZ/T 62025-2015 Rolling Curtain Window Decoration Fabric

  FZ/T 62011.1-2016 Fabric Products: Curtain

  JIS L1005-2009

  Technical indicators:

  1. Wavelength range: 380nm~780nm

  2. Wavelength error: ≤ ± 3 nm

  3. Spectral bandwidth: 6nm

  4. Wavelength interval: 10nm

  5. Transmission ratio range: 0.0~199.9%
