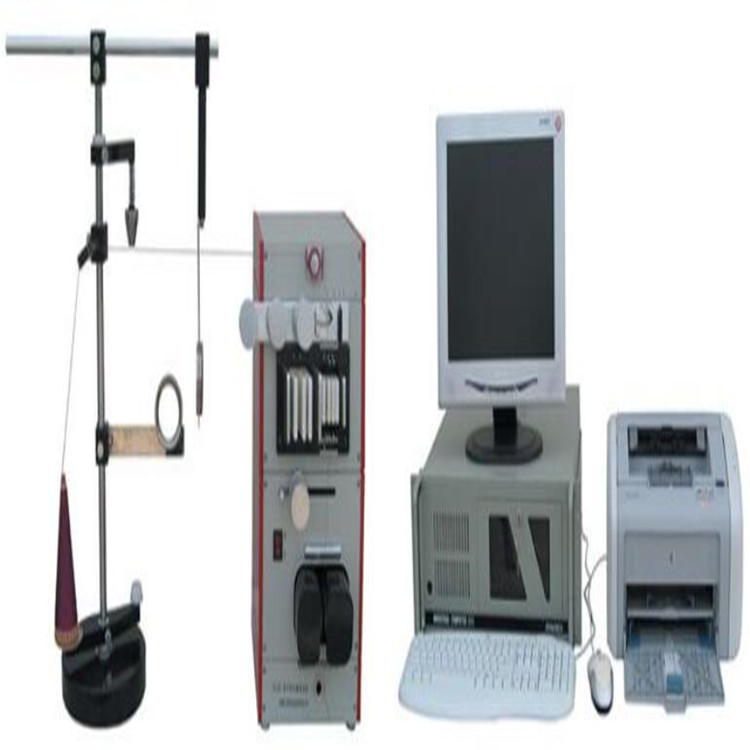

Stripe uniformity tester

  The evenness tester is a high-performance and efficient textile laboratory instrument used to test the uneven density of fine yarn, coarse yarn, and sliver, analyze the causes of unevenness, and is suitable for testing the evenness of cotton, wool, linen, and synthetic short fiber pure and blended yarn.

  Main parameters:

  1. Capacitance detection slots: 4

  2. Test range: 4tex~80k tex

  3. Test speed: 8, 25, 50, 100, 200, 400, 800m/min

  4. Test time: 10 seconds to 20 minutes, can be set arbitrarily

  5. CV%, U% value range: 0.2% to 100%

  6. Variation length curve: cutting length of 1 cm to 1000m

  7. Simultaneously output three types of 12 level defect values:

  Details -30%, -40%, -50%, -60%

  Coarse nodes+35%,+50%,+70%,+100%

  Cotton knots+140%,+200%,+280%,+400%

  8. Spectrogram: 170 channels, wavelength range 1cm-2000m

  9. Frequency distribution map of linear density: -100% to+100%,+100% to+400%

  10. DR% value: Output DR (1m,+5%), DR (1m, -5%), DR (20cm,+35%), DR (20cm, -30%) four levels of DR% value

  11. Batch measurement frequency: ≤ 20
