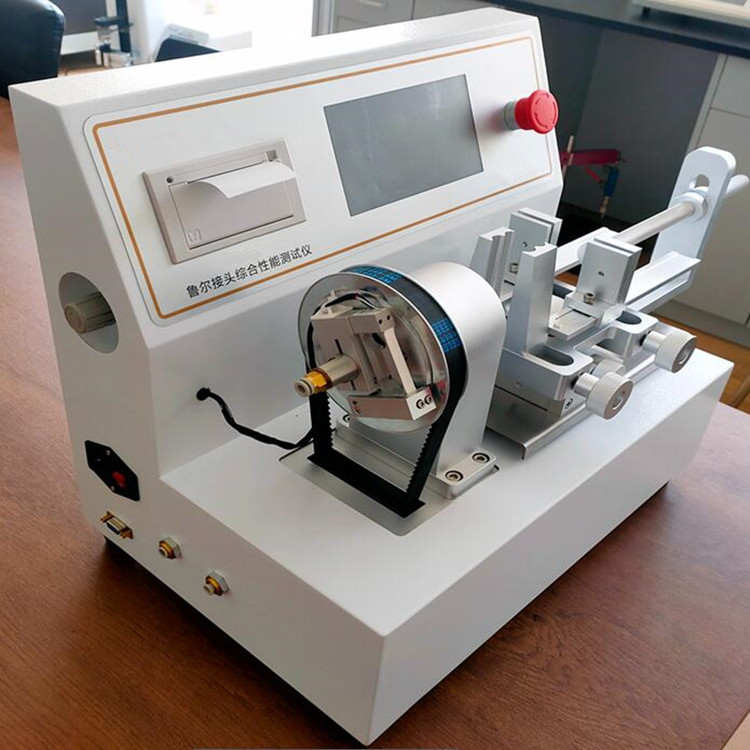

The Ruhr cone joint comprehensive tester is suitable for testing locked and non locked Ruhr joints used in infusion sets, blood transfusions, infusion needles, catheters, anesthesia filters, and other medical devices. Equipped with various independent testing modes such as liquid leakage test, air leakage test, separation force test, stress cracking test, torque test, and anti slip wire test, it is widely used in medical device manufacturers, testing institutions, and other units.

　　Reference standards:

　　GB/T1962.1-2015, GB/T1962.2-2001, ISO80369, YY/T 1040.1-2015, YY/T0916

　　Technical parameters:

　　Axial force: 1-100N

　　Pressurized water pressure: 0-500KPa (can be set arbitrarily)

　　Test torque: 0.01-0.50Nm

　　Working temperature: 5 ℃ -40 ℃

　　Relative humidity: 45% -80%, no condensation

　　Working power supply: 220V ± 22V, 50Hz ± 11Hz
