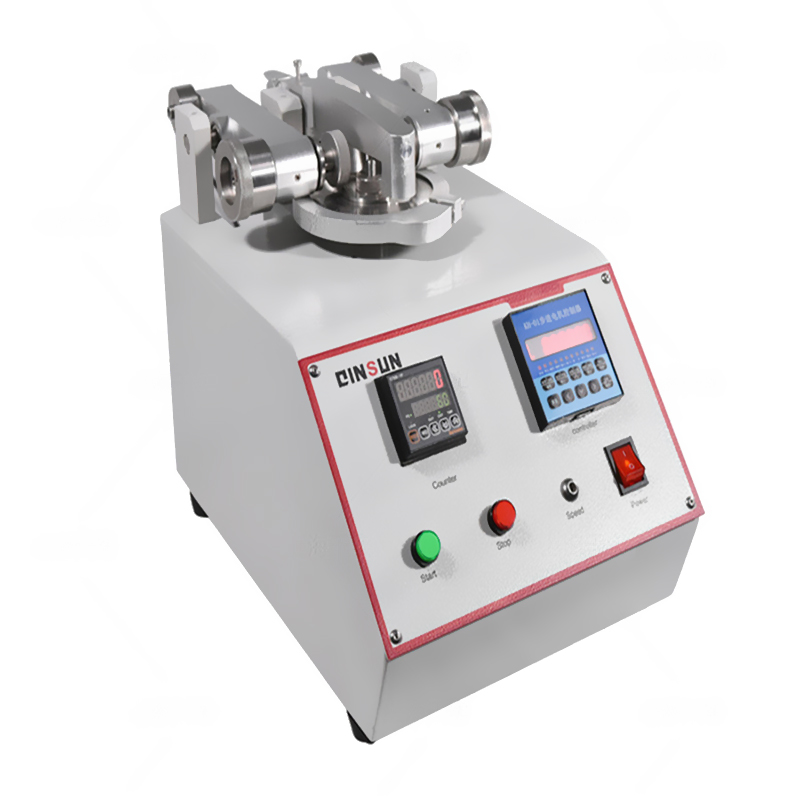

Taber wear tester is widely used for wear testing of materials such as plastics, coatings, laminates, leather, paper, ceramics, carpets, glass, etc. This precision instrument is widely used for accelerated wear testing and can provide reliable material wear test data within a few minutes.

　　Compliant with standards:

　　ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799, etc.

　　Operation :

　　Firstly, prepare the accessories and test samples;

　　Place the prepared sample on the testing platform and secure it;

　　Install the friction wheel onto the fixture;

　　Load the balance weights on both sides;

　　Adjust the height of the vacuum pump suction wall to remove debris from the sample;

　　Insert the instrument into the sample in the same way at another workstation;

　　Turn on the instrument switch;

　　Set the number of bearing transmissions on the timer;

　　Start, the friction wheel moves at a certain speed to perform cyclic friction on the sample;

　　Automatically stop when the set value is reached;

　　Remove the friction wheel and weight, loosen the fixture, and remove the sample;

　　Test completed, turn off the instrument;

　　After the instrument test is completed, samples are taken for analysis and comparison to evaluate the friction resistance of the material.
