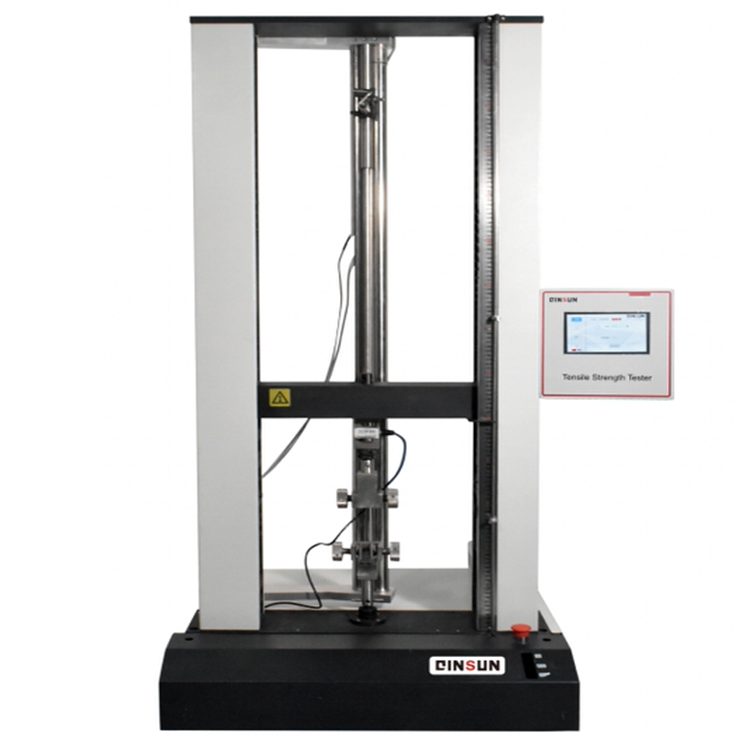

Electronic fabric strength tester standards

  Electronic fabric strength tester is mainly used for testing the mechanical properties of materials such as films, fibers, and paper, such as tension, compression, and bending. It is a device used for testing the mechanical properties of materials.

  Widely applicable:

  Thin film materials: used to test the elastic modulus, yield strength, maximum tensile strength and other parameters of thin film materials, providing important technical support for the research and production of thin film materials.

  Fiber materials: used to test the strength, elasticity and other parameters of fiber materials, providing important technical support for the research and production of fiber materials.

  Paper material: used to test the tensile strength, compressive strength and other parameters of paper, providing important technical support for the research and production of paper.

  Other materials: Suitable for testing the mechanical properties of various materials, including plastics, rubber, metals, and other materials.


  Applicable standards:

  ASTM D5034, ASTM D2261, ASTM D434, GB/T3923, GB/T3917, GB/T13772, FZ/T80007.1, ISO5081, DIN53859, DIN53858, BS3320, 4303, 2576, 2543

  Main parameters:

  1. Force measurement range: 100N, 2500N, 5000N, optional

  2. Stretching speed: 2mm/min~1200mm/min, any

  3. Return speed: 2mm/min~1000mm/min

  4. Timed stretching: 20s ± 3s, 30s ± 5s optional

  5. Zui large set stretching times: 99 times

  6. Average number of groups: 2-30 times (longitudinal and latitudinal averages can be calculated separately)

  7. Extension range: The elongation rate can reach 350% at a spacing of 200mm

  8. Spacing: Any adjustment between 25 and 500mm
