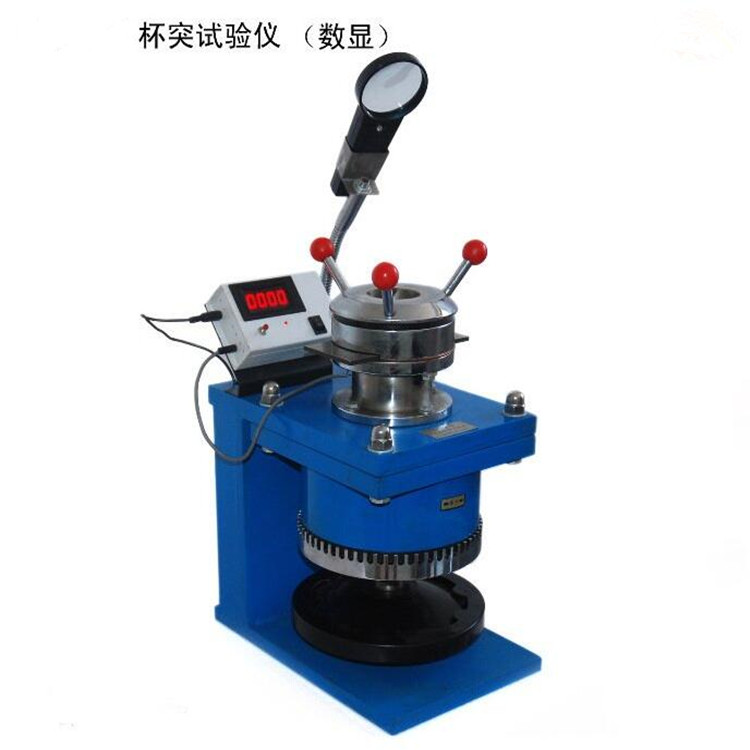

Paint film cupping tester is suitable for evaluating the resistance to cracking or separation from metal substrates of coatings (single layer or matching system coatings) of paints, clear paints, and related products under standard experimental methods. After gradually deforming, the indentation test is carried out to evaluate whether the coating passes or does not pass. It is also possible to gradually increase the depth of indentation to determine the minimum depth at which the coating has just cracked or started to detach from the substrate.

　　According to the standards:

　　ISO1520, GB9753-88

　　Technical parameters:

　　1. Compression diameter: 20mm

　　2. Compression depth: 10mm

　　3. Compression accuracy: 0.05mm

　　4. Digital display division value: 0.01mm

　　5. Large compression force: 1000N

　　6. Sample size: 70mm * 70mm * 0.3mm~1.25mm

　　Advantages and characteristics:

　　1. Have a strong after-sales service team;

　　2. Able to handle various issues in a timely and fast manner, relieving customers of any worries they may have;

　　3. Complete spare parts to solve the problem of long lead times when ordering spare parts;

　　4. Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.

　　According to the standards:

　　ISO1520, GB9753-88

　　Technical parameters:

　　1. Compression diameter: 20mm

　　2. Compression depth: 10mm

　　3. Compression accuracy: 0.05mm

　　4. Digital display division value: 0.01mm

　　5. Large compression force: 1000N

　　6. Sample size: 70mm * 70mm * 0.3mm~1.25mm
