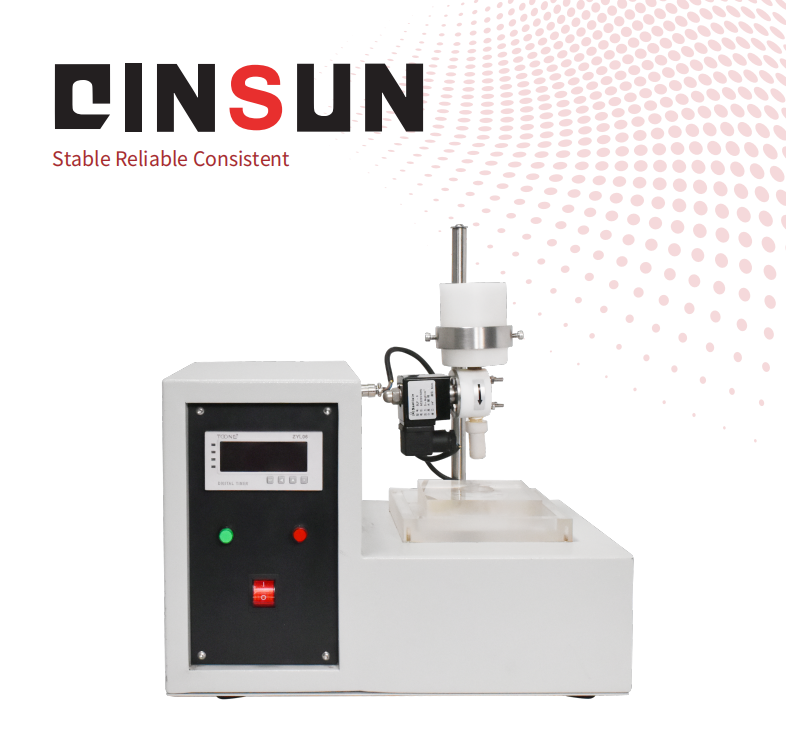

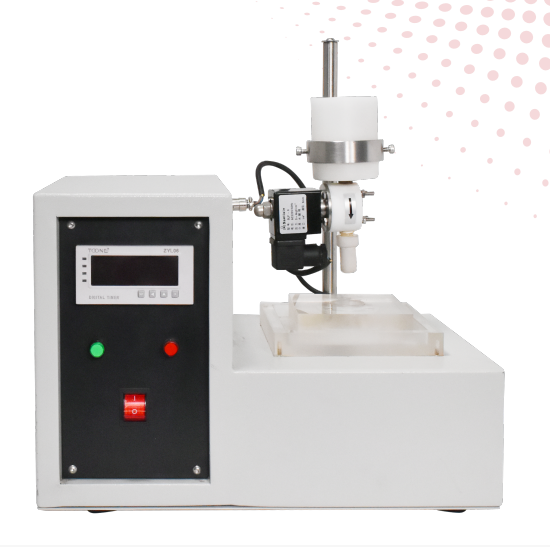

The G373 Liquid Sliding Penetration Comprehensive Performance Tester is a precision instrument designed to evaluate the liquid penetration performance of diapers and hygienic non-woven fabrics. It accurately measures strike-through, back-seepage, and overall penetration efficiency, simulating real-world liquid exposure to assess product quality and reproducibility. The tester integrates a solenoid-controlled funnel, adjustable sample holder, and automated data acquisition for precise and repeatable results.

Application

The tester is widely used in:

(1) Diaper and hygiene product manufacturing for evaluating absorbency, strike-through, and backflow resistance

(2) Non-woven fabric R&D for assessing liquid penetration properties of sanitary materials

(3) Quality control laboratories for verifying batch-to-batch performance of diapers and pads

(4) Third-party testing institutions for product performance certification

(5) Regulatory and supervisory agencies for monitoring compliance with hygiene and safety standards

Standards

QB/T 2493-2000: Diapers (including diaper care/pads)

FZ/T 60017-1993: Hygienic thin non-woven fabric liquid permeability test method

ISO 9073-6: Nonwovens – Determination of liquid penetration

ASTM F1869/F1869M: Standard test method for liquid penetration resistance of textiles

Product Features

(1) Solenoid-controlled funnel: Simulates liquid application for penetration and strike-through testing

(2) Adjustable mechanical sample holder: Supports multi-test setups with precise angle control for reproducibility

(3) Sensor-integrated control system: Captures real-time liquid penetration data

(4) Data processing software: Transfers test results to a computer, generates curves, and enables in-depth analysis

(5) Automated operation: Simplifies the test process for consistent and accurate results

Technical Specifications
