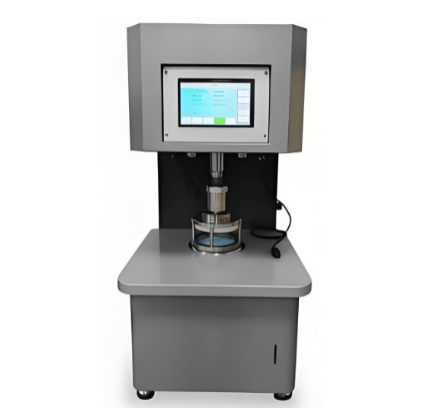

Automatic Hydrostatic Head Tester G-AH480


An Automatic Hydrostatic Head Tester is a testing instrument used to determine the water penetration resistance of fabrics, membranes, and waterproof materials. It applies gradually increasing water pressure to a specimen until water penetrates through the material surface, and automatically records the pressure value at the point of penetration to evaluate the material’s waterproof performance. The equipment features a high degree of automation, high testing accuracy, and excellent repeatability. It is widely used for performance testing of protective clothing, outdoor fabrics, and technical textiles.

Application

Hydrostatic Head Tester, used for determining the resistance of fabrics (canvas, coated fabrics, cover cloth, rainproof clothing fabrics, and geotextile materials) and films to water penetration under pressure while firmly clamped in the test rig of standard area.

Standards

Medical Masks and Protective Clothing: EN 14126 - 2003. EN14325. EN ISO 7854. AATCC 127. ISO 811/1420A, EN 20811. GB/T 4744

Parameters

Parameter

Specification

Drive System

Closed-loop controlled servo motor piston system

Pressure Control

Unique water pressure raising rate balance system

Test Method Selection

Variable test methods with programmable time & pressure rate

Data Storage

Test time and pressure increase rate can be set and saved

Pressure Adjustment

Wide range, freely adjustable with dynamic feedback anti-overload system

Display

Large color touch panel with real-time test results

Reporting

Test reports can be generated via software and printed directly

Test Methods

Pressure raising mode, constant-pressure mode, constant pressure & fixed time mode, extending-relaxing mode, water penetration & leakage mode

Pressure Range

0–50 kPa (5 m water column); 0–200 kPa (20 m); 0–500 kPa (50 m); 0–1000 kPa (100 m)

Pressure Increasing Rate

1–100 kPa/min, stepless adjustable

Units Supported

Pa, kPa, mmHg, cmH₂O, mmH₂O, bar, PSI

Clamping Force

Automatic clamp, 5 kN holding force

Standard Test Head

100 cm² (optional: 7.8. 10. 19.63. 20. 26. 28 cm²)

Warranty

One year warranty
