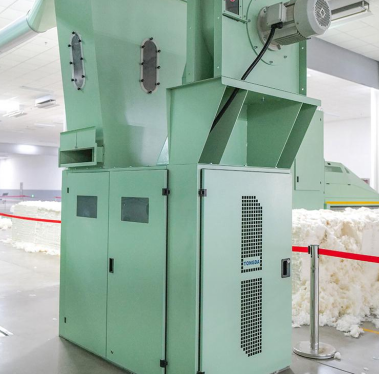

Single Roll Cleaner G-SR010B


Single Roll Cleaner is a fiber cleaning device used in the pre-spinning process (Blow Room) of textiles. It is mainly used to remove impurities, dust, short fibers, cottonseed hulls, leaf debris and other impurities from raw materials such as cotton and chemical fibers, thereby improving fiber purity and providing stable raw materials for subsequent carding and spinning.

Parameters

Item

Specification

Production capacity

≤800 kg /h, width 1.60m

Spiked roller size

750 X 1594 mm

Speed adjustment

 Mechanical/electrical

Frequency control

Normally 400-800rpm, generally 770 rpm

Dust bar type

68 pcs

Setting

5.5~11mm

Setting Angle

5˚ ~30˚

Main motor

7.5 KW,1430 rpm

Carriage motor

 0.37KW ,1430 rpm

Warranty

One year warranty
