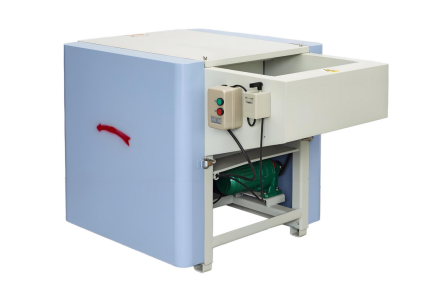

Porcupine Beater G-PB010E


The porcupine beater is a key opening equipment component in the blowroom process of the textile industry. It is mainly used to open, remove impurities, and separate fibers such as cotton and chemical fibers, gradually breaking down larger fiber clumps into smaller fiber bundles to provide uniform raw materials for subsequent blending, cleaning, and carding processes.

Parameters

Item

Specification

Production Capacity:

600 kg/h (Min)

Working width

1060 mm (Min)

Feed Roller Speed

18-85 r/min

Beater Speed

516/582/647 r/min

Installed Power

3.55 KW

Warranty

One year warranty
