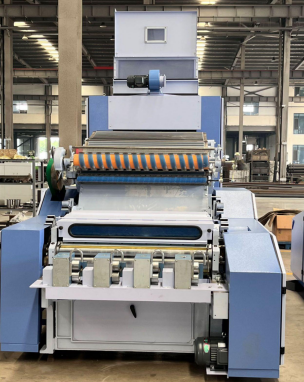

Finisher Card G-FC130


The FINISHER CARD (combing machine/final carding machine) is a key piece of equipment in the textile combing process. It is located after the Breaker Card and is mainly used to comb the fibers more finely, making the fiber sliver more uniform and clean, and providing high-quality raw materials for subsequent drawing and spinning processes.

Parameters

Item

Specification

1. Type

3 1/2 Pair Half Circular Down Striker/4 1/2 Pair Half Circular Down Striker

2. Uptake

Positively driven - Detachable

3. Feed

By Roll Former Rolls

4. Delivery

Roll Former

5. Working Width

70 inches

6. Sliver Width

5 inches

7. Delivery Rate

240 - 300 ft./min.

8. Draft Range

10.2 - 19.7

9. Main Motor

7.5 Kw (10HP)

10. Card Clothing

Wooden Staves / Metalag

11. Cylinder Speed

225 rpm

12. Worker & Stripper

3/4 Pairs

13. Feed Stripper

1 No.

14. Worker / Stripper Drive

Chain & Sprocket (MJF 01) / Gear-Pulley & Belt (MJF 02)

15. Cylinder Diameter

48 inches

16. Doffer Diameter

21.3 inches

17. Feeder Diameter

6.4 inches

18. Feed Stripper Diameter

6.4 inches

19. Worker Diameter

10.6 inches

20. Stripper Diameter

10.6 inches

21. Drawing Roller Diameter

4.0 inches

22. Delivery Roller Diameter

5 inches

23. Conveyor Roller Bare Diameter

4.5 inches

Warranty

One year warranty
