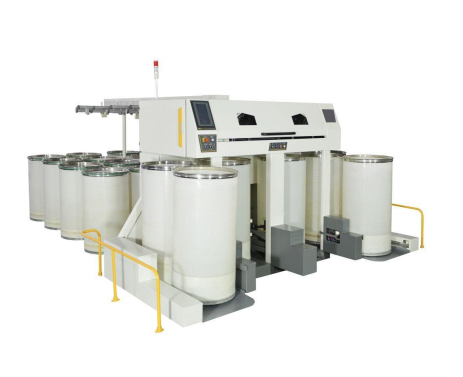

Drawing Machine (2nd) G-DM150


The DRAWING MACHINE (2nd) is a key piece of equipment in the spinning process used to further improve the quality of the fiber sliver. It is located after the 1st Drawing Machine and mainly performs secondary merging and fine drafting of the fiber sliver to make the yarn more uniform and stable.

Parameters

Item

Specification

Heads per frame

3/5

Silvers per head

8

Deliveries per head

2

Pitch of Silver

4.5”

Length of reach

12”

Diameter of front roller

2.1/4”

Diameter of back roller

2

Diameter of pressing roller

MacDraw

Width of silver trap

11/4”

Width of silver at feed

21/4”

Width of gills

Through

Doubling on Frame

4:1

Draft / Range

5.5-6.5

Description of rubber at front & back

Revolving

Production in kg/hr

300 (Approx.)

Warranty

One year warranty
